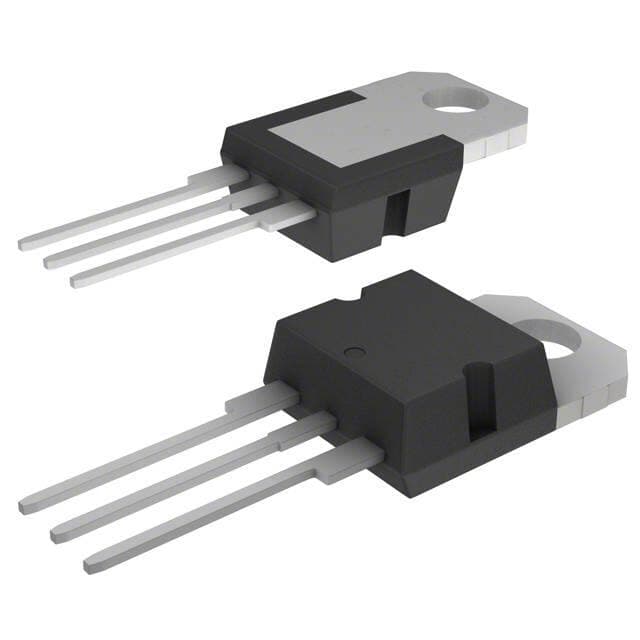

STGP15H60DF Information
ST STGP15H60DF technical specifications, attributes, parameters and parts with similar specifications to ST STGP15H60DF.
- Type
- Parameter
- Lifecycle Status
- ACTIVE (Last Updated: 7 months ago)
- Factory Lead Time
- 20 Weeks
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Package / Case
- TO-220-3
- Number of Pins
- 3
- Weight
- 6.000006g
- Operating Temperature
- -55°C~175°C TJ
- Packaging
- Tube
- Part Status
- Active
- Type
- Parameter
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- ECCN Code
- EAR99
- Max Power Dissipation
- 115W
- Base Part Number
- STGP15
- Element Configuration
- Single
- Input Type
- Standard
- Power - Max
- 115W
- Collector Emitter Voltage (VCEO)
- 600V
- Max Collector Current
- 30A
- Reverse Recovery Time
- 103 ns
Download datasheets and manufacturer documentation for ST STGP15H60DF.
STGP15H60DF IGBT Description
The STGP15H60DF is a member of the H series of IGBTs, which offers the best balance of conduction and switching losses for high switching frequency converter efficiency. A sophisticated proprietary trench gate field-stop structure was used to create the device. In addition, a slightly positive VCE(sat) temperature coefficient and a very tight parameter distribution make paralleling safer.
STGP15H60DF IGBT Features
Safe paralleling
Short-circuit rated
Ultrafast soft recovery antiparallel diode
High-speed switching
Tight parameters distribution
Low thermal resistance
STGP15H60DF IGBT Applictaions
Fan
Motor Control
AirCon
Washing Machine
Compressor
Home Appliance
