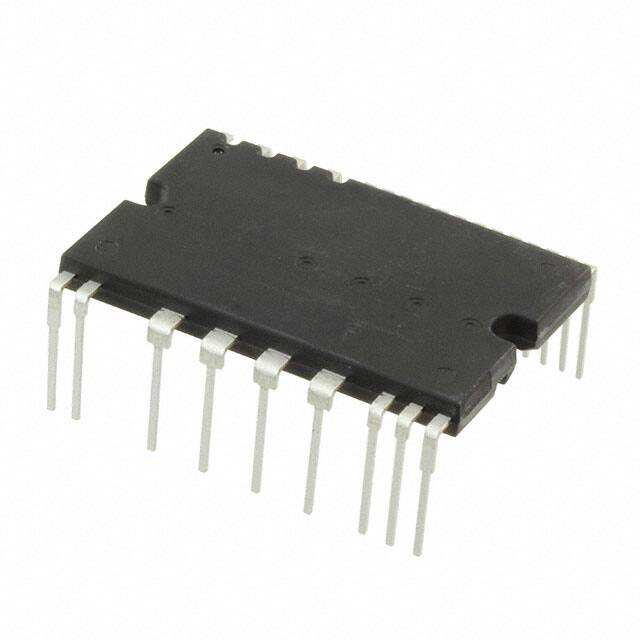

ST STGIF10CH60TS-L
Manufacturer No:
STGIF10CH60TS-L
Manufacturer:
Package:
26-PowerDIP Module (1.134, 28.80mm)
Description:
Description: SLLIMM 2nd series IPM, 3-phase inverter, 15 A, 600 V short-circuit rugged IGBTs
Quantity:
Delivery:
Payment:
PRICING (in USD)
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $ 6.050000 | $ 6.050000 |
| 10 | $ 5.445000 | $ 54.450000 |
| 25 | $ 5.005000 | $ 125.125000 |
| 50 | $ 4.710000 | $ 235.500000 |
| 250 | $ 4.150000 | $ 1037.500000 |
In Stock :Available
Want a lower wholesale price? Please send RFQ, we will respond immediately.
STGIF10CH60TS-L information
ST STGIF10CH60TS-L technical specifications, attributes, parameters and parts with similar specifications to ST STGIF10CH60TS-L.
| Type | Parameter |
|---|---|
| Rohs Code | Yes |
| Part Life Cycle Code | Active |
| Ihs Manufacturer | STMICROELECTRONICS |
| Reach Compliance Code | compliant |
| ECCN Code | EAR99 |
| HTS Code | 8542.39.00.01 |
| Factory Lead Time | 16 Weeks |
| Samacsys Manufacturer | STMicroelectronics |
| Analog IC - Other Type | AC MOTOR CONTROLLER |
| JESD-30 Code | R-PDFM-T26 |
| JESD-609 Code | e3 |
| Number of Functions | 1 |
| Number of Terminals | 26 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -40 °C |
| Output Current-Max | 30 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DFM |
| Package Shape | RECTANGULAR |
| Package Style | MICROELECTRONIC ASSEMBLY |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Supply Voltage-Max (Vsup) | 16.5 V |
| Supply Voltage-Min (Vsup) | 13.5 V |
| Supply Voltage-Nom (Vsup) | 15 V |
| Type | Parameter |
|---|---|
| Technology | HYBRID |
| Temperature Grade | AUTOMOTIVE |
| Terminal Finish | Matte Tin (Sn) - annealed |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
