ST STG4159BJR

Manufacturer No:

STG4159BJR

Manufacturer:

Package:

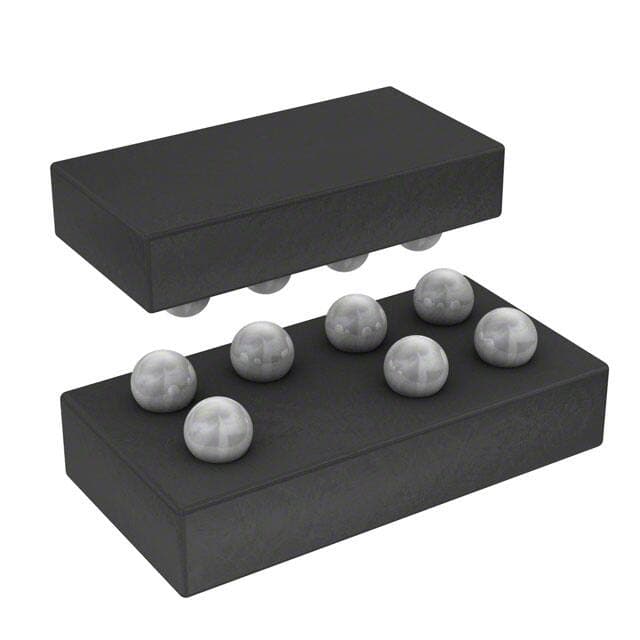

7-WFBGA, FCBGA

Description:

38ns, 17ns SPDT 300mOhm BOTTOM Analog Switches BREAK-BEFORE-MAKE STG4159 7 Pins 30nA 1.8V 7-WFBGA, FCBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STG4159BJR information

ST STG4159BJR technical specifications, attributes, parameters and parts with similar specifications to ST STG4159BJR.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
7-WFBGA, FCBGA

Number of Pins
7

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
Not Applicable

Number of Terminations
7

Resistance
300mOhm

Subcategory
Multiplexer or Switches

Max Power Dissipation
500mW

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
1.8V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Base Part Number
STG4159

Pin Count
7

Number of Outputs
2

Number of Channels
1

Min Supply Voltage
1.65V

Operating Supply Current
50nA

Power Dissipation
500mW

Max Supply Current
50nA

Turn On Delay Time
38 ns

Number of Inputs
1

Supply Type
Dual, Single

Turn-Off Delay Time
17 ns

-3db Bandwidth
28MHz

On-State Resistance (Max)
300mOhm

Multiplexer/Demultiplexer Circuit
2:1

Off-state Isolation-Nom
69 dB

Current - Leakage (IS(off)) (Max)
30nA

Channel Capacitance (CS(off), CD(off))
30pF

On-state Resistance Match-Nom
0.005Ohm

Switch Circuit
SPDT

Switch Time (Ton, Toff) (Max)
38ns, 17ns

Charge Injection
140pC

Channel-to-Channel Matching (ΔRon)
3m Ω

Crosstalk
-69dB @ 100kHz

Switching
BREAK-BEFORE-MAKE

Voltage - Supply, Single (V+)
1.65V~4.8V

Radiation Hardening
No

Download datasheets and manufacturer documentation for ST STG4159BJR.

Datasheets:

stmicroelectronics-stg4159bjr-datasheets-5646.pdf

stmicroelectronics-stg4159bjr-datasheets-1413.pdf

stmicroelectronics-stg4159bjr-datasheets-1414.pdf

STG4159BJR Overview

As the electronic part is packed in 7-WFBGA, FCBGA, international shipping is convenient. A high level of reliability can be achieved through the use of an advanced packaging method Tape & Reel (TR). The multiplexer is located in Surface Mount. 2:1 is the number of circuits in the multiplexer and demultiplexer. Operating temperature extended to -40°C~85°C TA. Total terminations are 7. The electronic part provides high-quality output because it has 1 channels. Powered by a 1.8V voltage supply, the electrical part should be switched on and run. The electrical component body receives 7 pins. Circuits based on SPDT switching are used to construct these analog switch ics. Try searching with STG4159 to find analog multiplexer variants. An switch multiplexer with 300mOhm internal resistance has a value of 300mOhm. Datasheets for 7 pin functions are available upon request. The analogue multiplexer in this example is a typical Multiplexer or Switches. Multiplexers should not be powered above 4.8V in normal situations. The analog switch ic is of the Dual, Single supply type and is cost-effective. The lowest voltage the electronic part should receive is 1.65V. An operating current of 50nA would be sufficient for this switch device. Using a single voltage supply, this switch device consumes 1.65V~4.8V volts. When the digital multiplexer is charged above 50nA, damage can occur. Operating the 1 inputs requires 1 inputs. A analog switch ics with 2 outputs is included.

STG4159BJR Features

1 Channels
Switch Circuit: SPDT
50nA Supply Current
-3db Bandwidth: 28MHz

STG4159BJR Applications

There are a lot of STMicroelectronics
STG4159BJR Analog Switches & Multiplexers ICs applications.

Imaging
Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
Relay Replacement
