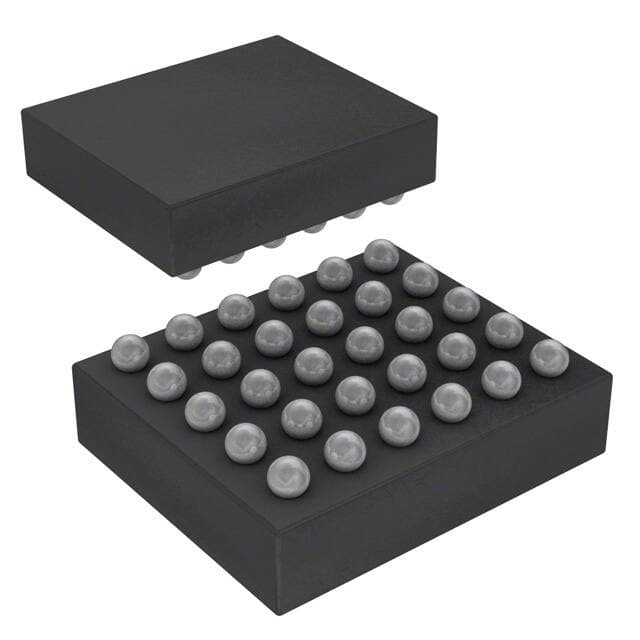

ST STG3820BJR
ST STG3820BJR

ST STG3820BJR

Manufacturer No:

STG3820BJR

Manufacturer:

ST

Package:

30-WFBGA, FCBGA

Description:

15ns, 13ns DPDT 5.8Ohm BOTTOM Analog Switches BREAK-BEFORE-MAKE STG3820 30 Pins 20nA 30-WFBGA, FCBGA

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STG3820BJR information

ST STG3820BJR technical specifications, attributes, parameters and parts with similar specifications to ST STG3820BJR.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 7 months ago)
  • Factory Lead Time
  • 24 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 30-WFBGA, FCBGA
  • Number of Pins
  • 30
  • Operating Temperature
  • -40°C~85°C TA
  • Packaging
  • Tape & Reel (TR)
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 30
  • ECCN Code
  • EAR99
  • Resistance
  • 7.3Ohm
  • Subcategory
  • Multiplexer or Switches
  • Max Power Dissipation
  • 1.12W
  • Technology
  • CMOS
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • BALL
  • Number of Functions
  • 4
  • Base Part Number
  • STG3820
  • Output
  • SEPARATE OUTPUT
  • Pin Count
  • 30
  • Number of Circuits
  • 4
  • Max Supply Voltage
  • 4.3V
  • Power Dissipation
  • 1.12W
  • Max Supply Current
  • 200nA
  • Turn On Delay Time
  • 15 ns
  • Data Rate
  • 480 Mbps
  • Number of Inputs
  • 8
  • Supply Type
  • Single
  • Turn-Off Delay Time
  • 13 ns
  • -3db Bandwidth
  • 800MHz
  • On-State Resistance (Max)
  • 5.8Ohm
  • Multiplexer/Demultiplexer Circuit
  • 2:2
  • Current - Leakage (IS(off)) (Max)
  • 20nA
  • Channel Capacitance (CS(off), CD(off))
  • 2pF
  • Switch Circuit
  • DPDT
  • Switch Time (Ton, Toff) (Max)
  • 15ns, 13ns
  • Charge Injection
  • 6.4pC
  • Channel-to-Channel Matching (?Ron)
  • 300m ?
  • Crosstalk
  • -78dB @ 1MHz
  • Switching
  • BREAK-BEFORE-MAKE
  • Switch-on Time-Max
  • 23ns
  • Voltage - Supply, Single (V+)
  • 1.65V~4.3V
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for ST STG3820BJR.

Datasheets:

STG3820BJR Overview


Shipping overseas is convenient with the electronic component packed in 30-WFBGA, FCBGA. High reliability is provided by advanced packaging method Tape & Reel (TR). In Surface Mount, this analog switch is mounted. Multiplexers and demultiplexers have a ratio of 2:2. Temperatures around -40°C~85°C TA are extended for operation. Total terminations are 30. The electronic part body is injected with 30 pins. A DPDT switching circuit is used to build these analog multiplexers. There are 4 circuits in this multiplexer. Try searching with STG3820 if you're looking for variants. There is 7.3Ohm internal resistance in this digital multiplexer. For functions related to 30 pins, please refer to the datasheets. Theswitch device is a typical Multiplexer or Switches. A voltage higher than 4.3V should not normally be supplied to the switches. Analogue multiplexers of the Single supply type that are cost-effective. 1.65V should be the lowest voltage fed to the electronic component. This analog switch requires a voltage of 1.65V~4.3V to drain from a single voltage supply. The analogue multiplexer may be damaged if voltage is greater than 200nA. The analog switch ic utilizes SEPARATE OUTPUT outputs in total. It is possible to operate 8 inputs.

STG3820BJR Features


Switch Circuit: DPDT
-3db Bandwidth: 800MHz


STG3820BJR Applications


There are a lot of STMicroelectronics
STG3820BJR Analog Switches & Multiplexers ICs applications.


  • Transmit
  • Low-Voltage
  • Isolation
  • Medical
  • Imaging
  • Ultrasound
  • Audio and video switching
  • Automatic test equipment
  • Precision data acquisition
  • Battery-powered systems
