ST STG3682QTR

Manufacturer No:

STG3682QTR

Manufacturer:

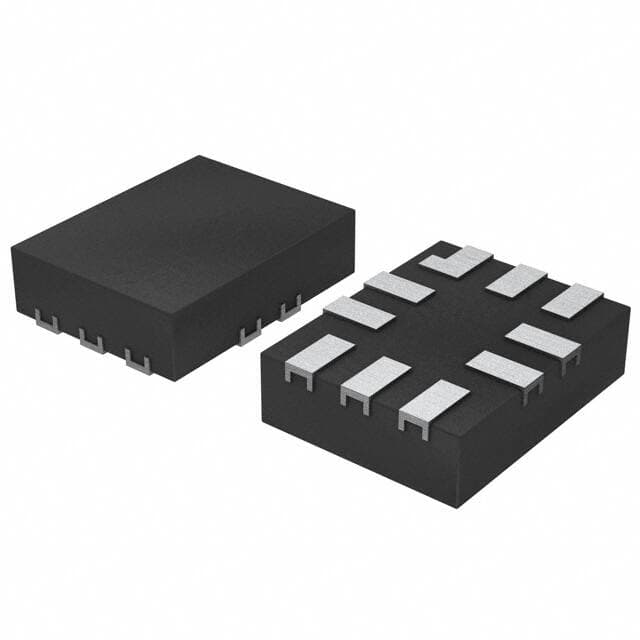

Package:

10-UFQFN

Description:

15ns, 13ns SPDT 5.2Ohm QUAD Analog Switches BREAK-BEFORE-MAKE STG3682 10 Pins 20nA 3V 10-UFQFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STG3682QTR information

ST STG3682QTR technical specifications, attributes, parameters and parts with similar specifications to ST STG3682QTR.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 7 months ago)

Factory Lead Time
8 Weeks

Contact Plating
Gold

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
10-UFQFN

Number of Pins
10

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

JESD-609 Code
e4

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
10

ECCN Code
EAR99

Resistance
5.2Ohm

Subcategory
Multiplexer or Switches

Max Power Dissipation
1.12W

Technology
CMOS

Terminal Position
QUAD

Number of Functions
2

Supply Voltage
3V

Base Part Number
STG3682

Pin Count
10

Number of Outputs
4

Polarity
Non-Inverting

Number of Channels
1

Max Supply Voltage
4.3V

Min Supply Voltage
1.65V

Operating Supply Current
100nA

Nominal Supply Current
1μA

Power Dissipation
1.12W

Max Supply Current
100nA

Turn On Delay Time
31 ns

Data Rate
480 Mbps

Number of Inputs
2

Supply Type
Single

Bandwidth
800MHz

Turn-Off Delay Time
22 ns

On-State Resistance (Max)
5.2Ohm

High Level Output Current
128mA

Low Level Output Current
128mA

Multiplexer/Demultiplexer Circuit
2:1

Off-state Isolation-Nom
79 dB

Current - Leakage (IS(off)) (Max)
20nA

Channel Capacitance (CS(off), CD(off))
5pF

On-state Resistance Match-Nom
0.3Ohm

Switch Circuit
SPDT

Download datasheets and manufacturer documentation for ST STG3682QTR.

Datasheets:

stmicroelectronics-stg3682qtr-datasheets-1619.pdf

STG3682QTR Overview

Presented in 10-UFQFN, this electrical component is convenient for overseas shipping. High reliability is ensured by the advanced packaging method Tape & Reel (TR). Surface Mount is where this multiplexer is located. Multiplexer and demultiplexer circuits have a number 2:1. Increasing operating temperature to around -40°C~85°C TA. Totally, there are 10 terminations. A high-quality output is provided by the electrical component's 1 channels. It is safe to turn on and run the electronic component with a 3V voltage supply. A total of 10 pins are injected into the electrical part body. A SPDT switching circuit is used for these analog switches. Using the STG3682 search parameter, you can discover variants of the switch. In this multiplexer, the internal resistance is 5.2Ohm. For details about the functions of 10 pins, please refer to the datasheets. There is Multiplexer or Switches analog multiplexer like this in the world. It is generally not recommended to supply a voltage higher than 4.3V to the switch device in normal circumstances. The digital multiplexer has a low cost Single supply. 1.65V is the lowest voltage the electrical component should receive. For this digital switch to work, 100nA current would suffice. An analogue multiplexer drains from a single voltage supply at 1.65V~4.3V. Putting voltage greater than 100nA on the multiplexer may cause damage. The electrical part can be operated at 3V voltage levels. The 2 inputs need to be operated in order to work. The data can be transferred over a wide range of bandwidths, called 800MHz bandwidths. In this digital multiplexer, there are 4 outputs.

STG3682QTR Features

1 Channels
Switch Circuit: SPDT
100nA Supply Current
Bandwidth: 800MHz

STG3682QTR Applications

There are a lot of STMicroelectronics
STG3682QTR Analog Switches & Multiplexers ICs applications.

Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
Relay Replacement
Battery Powered Systems
Existing multiplexer applications (both fault-protected and nonfault-protected)
New designs requiring multiplexer functions
Cellular phones
