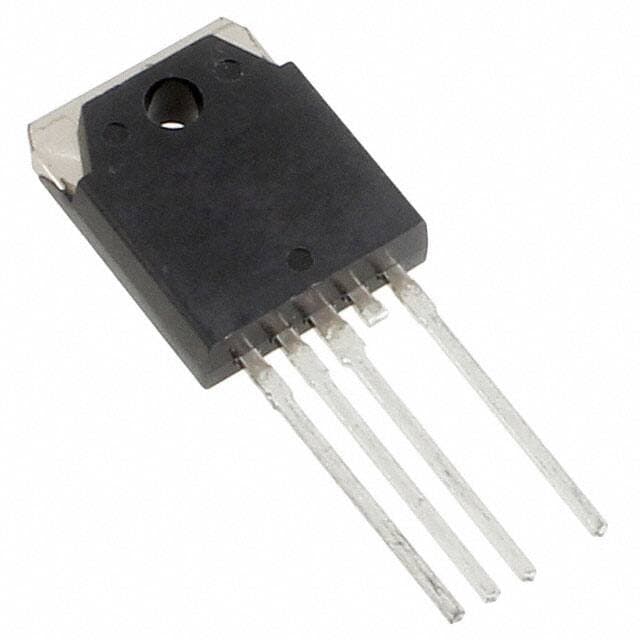

SANKEN STD03N

Manufacturer No:

STD03N

Manufacturer:

SANKEN

Package:

TO-3P-5

Description:

NPN - Darlington 150°C TJ 100?A ICBO 1 Elements 4 Terminations SILICON NPN TO-3P-5 Bulk Through Hole

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STD03N information

SANKEN STD03N technical specifications, attributes, parameters and parts with similar specifications to SANKEN STD03N.

Type
Parameter

Factory Lead Time
12 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-3P-5

Transistor Element Material
SILICON

Operating Temperature
150°C TJ

Packaging
Bulk

Published
2006

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
4

ECCN Code
EAR99

Max Power Dissipation
160W

Terminal Position
SINGLE

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Reach Compliance Code
unknown

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
5

JESD-30 Code
R-PSFM-T4

Qualification Status
Not Qualified

Number of Elements
1

Configuration
DARLINGTON WITH BUILT-IN DIODE AND RESISTOR

Power - Max
160W

Polarity/Channel Type
NPN

Transistor Type
NPN - Darlington

Collector Emitter Voltage (VCEO)
2V

Max Collector Current
15A

DC Current Gain (hFE) (Min) @ Ic, Vce
5000 @ 10A 4V

Current - Collector Cutoff (Max)
100?A ICBO

Vce Saturation (Max) @ Ib, Ic
2V @ 10mA, 10A

Collector Emitter Breakdown Voltage
160V

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for SANKEN STD03N.

Datasheets:

sanken-std03n-datasheets-7847.pdf

STD03N Overview

DC current gain in this device equals 5000 @ 10A 4V, which is the ratio of the base current to the collector current.Saturation of VC means the Ic value is at its maximum, so vce saturation (Max) is 2V @ 10mA, 10A.In extreme cases, the collector current can be as low as 15A volts.

STD03N Features

the DC current gain for this device is 5000 @ 10A 4V
the vce saturation(Max) is 2V @ 10mA, 10A

STD03N Applications

There are a lot of Sanken
STD03N applications of single BJT transistors.

Inverter
Interface
Driver
Muting
