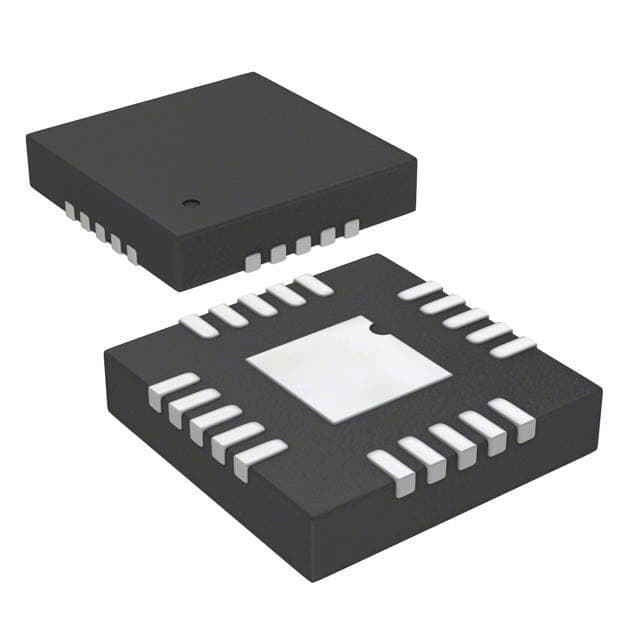

ST STCF02PNR

Manufacturer No:

STCF02PNR

Manufacturer:

ST

Package:

20-VFQFN Exposed Pad

Description:

3.6V 0.5mm PMIC STCF02 20 Pin 3.6V 20-VFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STCF02PNR information

ST STCF02PNR technical specifications, attributes, parameters and parts with similar specifications to ST STCF02PNR.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
20-VFQFN Exposed Pad

Number of Pins
20

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
20

ECCN Code
EAR99

Type
DC DC Regulator

Terminal Finish
Matte Tin (Sn) - annealed

Applications
Camera Flash

Subcategory
Display Drivers

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.6V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Base Part Number
STCF02

Pin Count
20

Power Supplies
3.6V

Max Supply Voltage
5.5V

Min Supply Voltage
2.7V

Output Current
600mA

Quiescent Current
3?A

Voltage - Output
2.5V~5.1V

Topology
Step-Down (Buck), Step-Up (Boost)

Output Current per Channel
600mA

Current - Output / Channel
600mA Flash

Internal Switch(s)
Yes

Number of Segments
1

Switching Frequency
1.8MHz

Voltage - Supply (Min)
2.7V

Multiplexed Display Capability
NO

Length
4mm

Width
4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ST STCF02PNR.

Datasheets:

stmicroelectronics-stcf02pnr-datasheets-0680.pdf

STCF02PNR Overview

In order to save board space, the 20-VFQFN Exposed Pad package is used. A LED driver using this design has 1 outputs.As a mounting method, Surface Mount is used.It emerges as a DC DC Regulator with high efficiency.It is possible for the led driver ic to operate normally at -40°C~85°C TA.The benefits of Camera Flash are considerable.For its operation, terminations with a value of 0 are used.A configuration of this chip is made up of 20 pins.It is inevitable that there will be undetermined failures when the supply voltage is less than 2.7V.A total of 1 segments have been created.It's mounted in Surface Mount.Part number STCF02 represents this LED driver.It is acceptable to supply voltages of 5.5V.2.5V~5.1V is the output voltage.In addition, it has 20 pins.Depending on its characteristics, it is classified into Display Drivers.For highest efficiency, it works with a minimal supply voltage of 2.7V.Loads can only be powered by 600mA current.As long as the switching frequency is maintained at 1.8MHz, this electronic component is able to perform all of its functions properly.When no external factors are present, there is 3?A current consumption.

STCF02PNR Features

Available in the 20-VFQFN Exposed Pad package
Operating temperature of -40°C~85°C TA
Supply voltage of 3.6V
Switching frequency of 1.8MHz

STCF02PNR Applications

There are a lot of STMicroelectronics
STCF02PNR LED Driver ICs applications.

Portable lighting
Gallery lighting
Museum lighting
High-end retail lighting
Medical surgery lighting
Replacement lamps
Panel lighting
Down lights
Linear fluorescent
A- lamps
