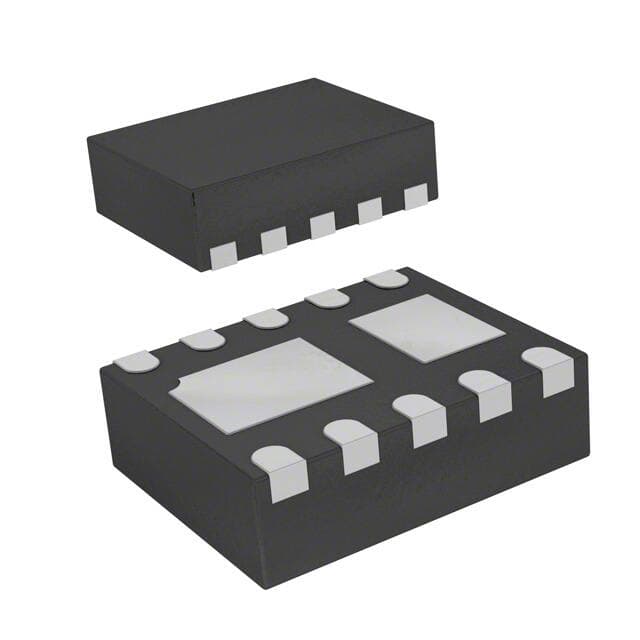

ST STBP120CVDK6F

Manufacturer No:

STBP120CVDK6F

Manufacturer:

Package:

10-WFDFN Exposed Pad

Description:

10 Terminations 1.2V~28V 10 Pin STBP120 Specialized Power Management ICs 1 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STBP120CVDK6F information

ST STBP120CVDK6F technical specifications, attributes, parameters and parts with similar specifications to ST STBP120CVDK6F.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 7 months ago)

Factory Lead Time
16 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
10-WFDFN Exposed Pad

Number of Pins
10

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

JESD-609 Code
e4

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
10

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Applications
Overload Protection

Subcategory
Power Management Circuits

Voltage - Supply
1.2V~28V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
2.9V

Terminal Pitch
0.5mm

Base Part Number
STBP120

Pin Count
10

Supply Voltage-Max (Vsup)
28V

Number of Channels
1

Analog IC - Other Type
POWER SUPPLY MANAGEMENT CIRCUIT

Operating Supply Current
170?A

Max Supply Current
250?A

Adjustable Threshold
NO

Watchdog Timer
No

Number of Voltages Monitored
1

Min Reset Threshold Voltage
3.25V

Max Reset Threshold Voltage
5.9V

Threshold Voltage
5.9V

Undervoltage Threshold
3.25V

Overvoltage Threshold
5.9V

Length
2.5mm

Height Seated (Max)
0.8mm

Width
2mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ST STBP120CVDK6F.

Datasheets:

stmicroelectronics-stbp120avdk6f-datasheets-4106.pdf

STBP120CVDK6F Overview

Tape & Reel (TR) is an acceptable method of shipping the power management.For ease of transportation, it is packaged the power management in 10-WFDFN Exposed Pad .An easy-to-adapt universal mounting system is provided by Surface Mount .There are a number of applications targeted at Overload Protection .Ensure that the operating temperature of the power management ic is set to -40°C~85°C in order to prevent malfunctions.The power management works at 1.2V~28V voltage.To find more power ic's pin-to-pin solutions, try searching STBP120 .On the power management, you will find 10 terminals.It has been praised for its accuracy as a POWER SUPPLY MANAGEMENT CIRCUIT analog IC.A power managment ic with 10 pins is available.In order to mount the integrated power supplies on PCBs or other boards, it has a Surface Mount .Powered by a 2.9V voltage, the power manager is capable of handling a range of demanding functions.Power ic pinout starts with the 10 pins.An input voltage of 170?A is required for this power management ic to operate.In the Power Management Circuits series, it is included.Keeping output quality is the responsibility of 1 channels working together.You should not supply more voltage than 28V to the power supply ic.

STBP120CVDK6F Features

Mainly used in Overload Protection applications
Operating temperature: -40°C~85°C
POWER SUPPLY MANAGEMENT CIRCUIT analog IC

STBP120CVDK6F Applications

There are a lot of STMicroelectronics
STBP120CVDK6FPower Management applications.

Portable Media Players
Portable Systems
Hand-Held Systems
Space satellite point of load supply
Communications payload
Optical imaging payload
Desktop PC
Motherboard
Standard notebook PC
Chromebook
