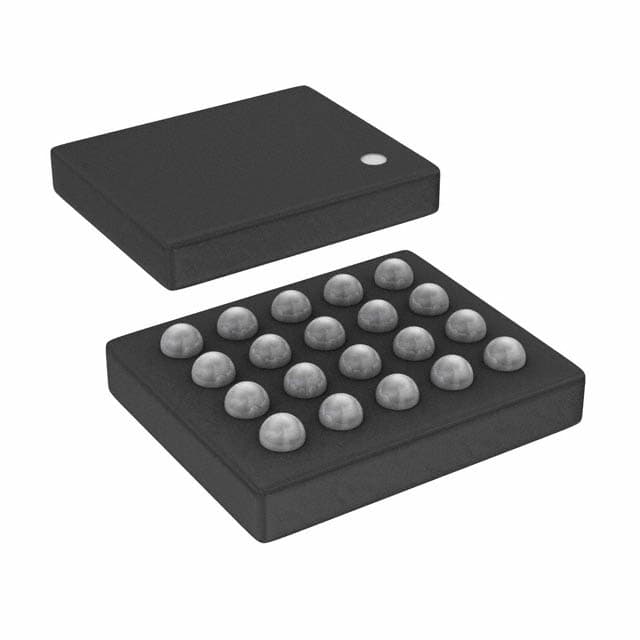

ST STBB2J30-R
Manufacturer No:
STBB2J30-R
Manufacturer:
Package:
20-UFBGA, FCBGA
Description:
2.4V 20-Pin STBB2 DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 2.5MHz Cut Tape (CT) 20-UFBGA, FCBGA
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
STBB2J30-R information
ST STBB2J30-R technical specifications, attributes, parameters and parts with similar specifications to ST STBB2J30-R.
- Type
- Parameter
- Lifecycle Status
- ACTIVE (Last Updated: 7 months ago)
- Factory Lead Time
- 24 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 20-UFBGA, FCBGA
- Number of Pins
- 20
- Operating Temperature
- -40°C~85°C TA
- Packaging
- Cut Tape (CT)
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- ECCN Code
- EAR99
- Base Part Number
- STBB2
- Function
- Step-Up/Step-Down
- Number of Outputs
- 1
- Efficiency
- 90 %
- Output Voltage
- 3.3V
- Output Type
- Programmable
- Max Output Current
- 800mA
- Operating Supply Voltage
- 5.5V
- Voltage - Input (Min)
- 2.4V
- Analog IC - Other Type
- SWITCHING REGULATOR
- Output Configuration
- Positive
- Max Output Voltage
- 4.5V
- Voltage - Output (Min/Fixed)
- 3V 3.3V
- Frequency - Switching
- 2.5MHz
- Synchronous Rectifier
- Yes
- Min Output Voltage
- 3.3V
- Nominal Output Voltage
- 3.3V
- Height
- 370?m
- Length
- 2.08mm
- Width
- 1.761mm
- REACH SVHC
- No SVHC
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for ST STBB2J30-R.
Datasheets:
STBB2J30-R Overview
A Cut Tape (CT) package is used in this voltage regulator to optimize performance. A SWITCHING REGULATOR analog IC is used in this voltage regulator 12v, which is the type of analog IC that this voltage regulator 12v is equipped with. In order to save space, this voltage regulator is packaged in the 20-UFBGA, FCBGA package. 1 outputs of voltage regulator are configured. Programmable outputs are generated on the output pins of this adjusting voltage regulator. A voltage regulator 12v such as this one fits the Surface Mount mounting bracket. Keeping dc to dc voltage regulator's operating temperature at -40°C~85°C TA is essential when operating. A DC-DC switching regulator such as this one switches at 2.5MHz. Voltage regulators like this one can operate at least with 2.4V as the dc to dc voltage regulator's minimum input voltage. It is evident from the table below that adjusting voltage regulator's output voltage (Min/Fixed) is equal to 3V 3.3V. As a member of the STBB2 family of DC/DC regulators, this is a DC/DC regulator. The voltage DC DC switching regulator can provide is up to 3.3V volts. During switching regulator operation, 20 pins are used. Ideally this switch regulator should have an output voltage of about 3.3V at the very least. A maximum output current of 800mA A is provided to meet the switching regulator operation requirements. DC DC switching regulator offers a maximum output voltage of 4.5V as its maximum output voltage. DC-DC switching regulator with supply voltage 5.5V.
