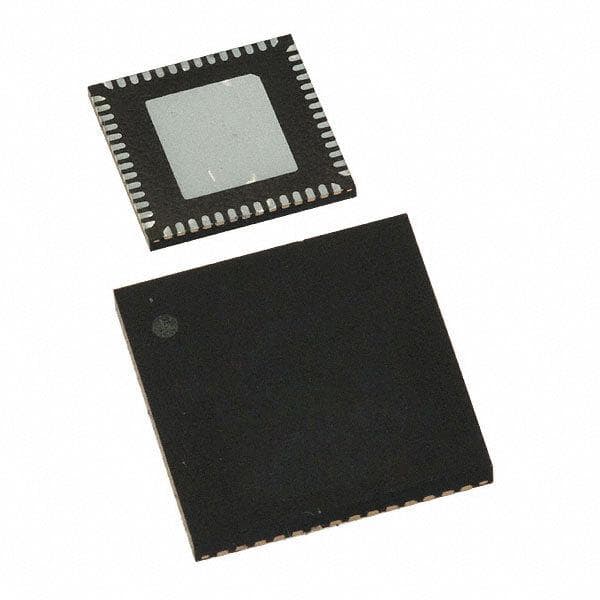

Renesas SSTVA16859BKLFT

Manufacturer No:

SSTVA16859BKLFT

Manufacturer:

Renesas

Package:

Description:

13 Bit 2.5V Specialty Logic IC 56 Pin 0.5mm 2.5V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SSTVA16859BKLFT information

Renesas SSTVA16859BKLFT technical specifications, attributes, parameters and parts with similar specifications to Renesas SSTVA16859BKLFT.

Type
Parameter

Mount
Surface Mount

Number of Pins
56

Packaging
Tape & Reel (TR)

Published
2006

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
56

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Bus Driver/Transceivers

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
2.5V

Terminal Pitch
0.5mm

Frequency
210MHz

Time@Peak Reflow Temperature-Max (s)
30

Pin Count
56

Number of Outputs
26

Qualification Status
Not Qualified

Polarity
Non-Inverting

Power Supplies
2.5V

Temperature Grade
COMMERCIAL

Max Supply Voltage
2.7V

Min Supply Voltage
2.3V

Number of Bits
13

Propagation Delay
3.5 ns

Family
SSTV

Logic Function
Buffer

Logic IC Type
D FLIP-FLOP

High Level Output Current
-16mA

Low Level Output Current
16mA

Clock Edge Trigger Type
Positive Edge

Length
8mm

Width
8mm

Thickness
850?m

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas SSTVA16859BKLFT.

SSTVA16859BKLFT Overview

Using Tape & Reel (TR) as a packaging method is common.In order to ensure that the device will work normally, the voltage 2.5V is supplied.For storing information, the memory is equipped with 13 bits.56 is the sum of all component pins.The 56 terminations prevent signal reflection off the transmission line.Mounted using Surface Mount.Its construction includes 56 pins.In normal situations, the minimum supply voltage can be kept at 2.3V.If the maximum supply voltage is kept at 2.7V, normal use can be maintained.This can be classified as a Bus Driver/Transceivers subcategory.For ease of use, it is recommended that the power supplies of 2.5V be maintained.This part is a part of the family SSTV that is optimized for quality and reliability.There is no need to exceed its maximum operating temperature of 70°C.The operating temperature should not fall below the minimum value of 0°C.A total of 1 elements make up the structure.Frequency 210MHz determines its operation.As its logic IC type, it uses D FLIP-FLOP.This configuration consists of 26 outputs.
