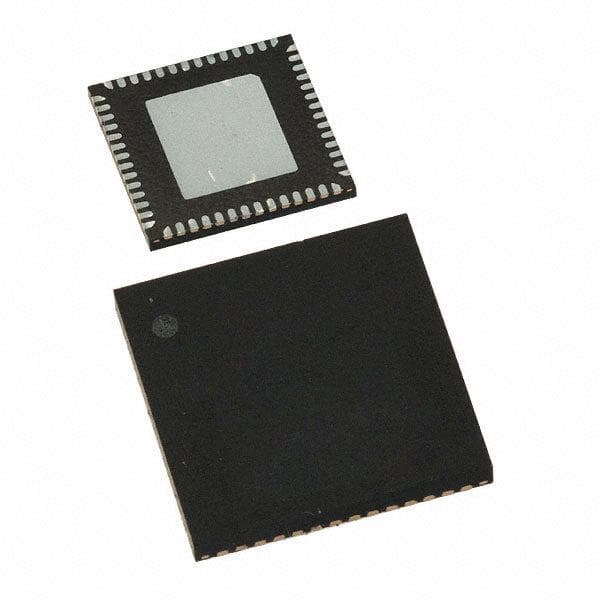

Renesas SSTV16859CKLF

Manufacturer No:

SSTV16859CKLF

Manufacturer:

Renesas

Package:

Description:

13 Bit 2.5V Specialty Logic IC 56 Pin 0.5mm 2.5V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SSTV16859CKLF information

Renesas SSTV16859CKLF technical specifications, attributes, parameters and parts with similar specifications to Renesas SSTV16859CKLF.

Type
Parameter

Mount
Surface Mount

Number of Pins
56

Published
2006

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
56

Terminal Finish
Matte Tin (Sn) - annealed

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Bus Driver/Transceivers

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
2.5V

Terminal Pitch
0.5mm

Frequency
200MHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
56

Number of Outputs
26

Qualification Status
Not Qualified

Number of Elements
1

Power Supplies
2.5V

Temperature Grade
COMMERCIAL

Max Supply Voltage
2.7V

Min Supply Voltage
2.3V

Number of Bits
13

Propagation Delay
3.5 ns

Family
SSTV

Logic Function
Buffer

Logic IC Type
D FLIP-FLOP

High Level Output Current
-20mA

Low Level Output Current
20mA

Clock Edge Trigger Type
Positive Edge

Length
8mm

Width
8mm

Thickness
850?m

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas SSTV16859CKLF.

Datasheets:

integrateddevicetechnology-sstv16859cklf-datasheets-0361.pdf

SSTV16859CKLF Overview

Providing a voltage of 2.5V ensures proper function of the device.Memory has a bit size of 13.The total number of pins on the component is 56.In 56 terminations, signals are prevented from reflecting off the end of the transmission line.Surface Mount is used for mounting.It is constructed from 56 pins.Keeping the minimum supply voltage at 2.3V can maintain normal operation.A maximum supply voltage of 2.7V can maintain normal use.The item falls under the Bus Driver/Transceivers subcategory.Maintaining the power supplies of 2.5V is essential for convenient operation.The electronic part is part of the SSTV family of parts that are optimized for reliable high quality performance.There is one important point to note, which is that the operating temperature of the device should not exceed 85°C.Operating temperature should be at least -40°C and not lower.1 elements are present in it.A frequency of 200MHz is used for operation.It is implemented with a logic IC type of D FLIP-FLOP.In order to configure it, it has 26 outputs.
