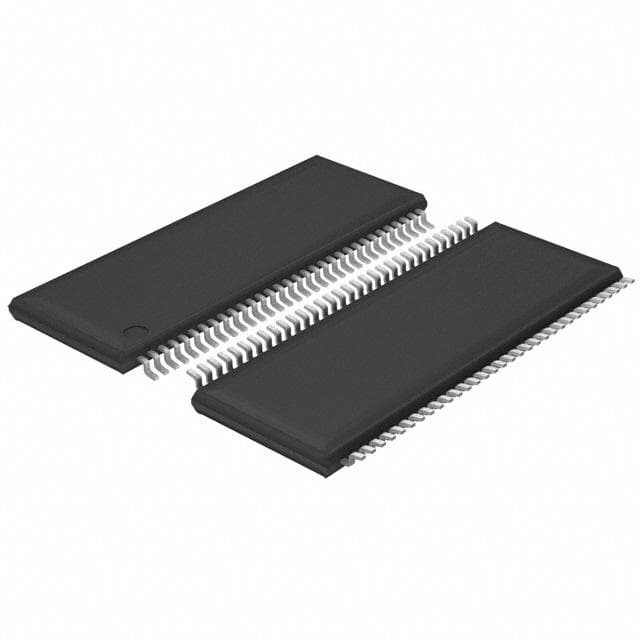

Renesas SSTV16859CGLF

Manufacturer No:

SSTV16859CGLF

Manufacturer:

Renesas

Package:

TSSOP

Description:

13 Bit Specialty Logic IC 64 Pin 0.5mm 2.5V TSSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SSTV16859CGLF information

Renesas SSTV16859CGLF technical specifications, attributes, parameters and parts with similar specifications to Renesas SSTV16859CGLF.

Type
Parameter

Mount
Surface Mount

Package / Case
TSSOP

Number of Pins
64

Published
2006

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
64

Terminal Finish
Matte Tin (Sn)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
2.5V

Terminal Pitch
0.5mm

Frequency
200MHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
64

Number of Outputs
26

Qualification Status
Not Qualified

Number of Elements
1

Temperature Grade
COMMERCIAL

Max Supply Voltage
2.7V

Min Supply Voltage
2.3V

Number of Bits
13

Propagation Delay
3.5 ns

Family
SSTV

Logic Function
Buffer

Logic IC Type
D FLIP-FLOP

High Level Output Current
-20mA

Low Level Output Current
20mA

Clock Edge Trigger Type
Positive Edge

Length
17mm

Width
6.1mm

Thickness
1mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas SSTV16859CGLF.

SSTV16859CGLF Overview

It is included in package TSSOP.2.5V is provided to ensure that the device works normally.Using the memory, information is stored in 13 bits.Adding up all component pins equals 64.64 terminations are designed to prevent signals from reflecting off the end of the transmission line.Surface Mount is the way to mount it.For its construction, 64 pins are used.With the minimum supply voltage set to 2.3V, normal use can be maintained.The maximum supply voltage of 2.7V is sufficient for normal use.Electronic parts from the SSTV family are optimized for high quality and reliable performance.In order for it to function properly, its operating temperature shouldn't exceed 85°C.Ensure that the operating temperature is not below -40°C at all times.As a result, it consists of 1 elements.There is 200MHz frequency associated with it.The logic IC type of this device is D FLIP-FLOP.As a result, it is configured with 26 outputs.
