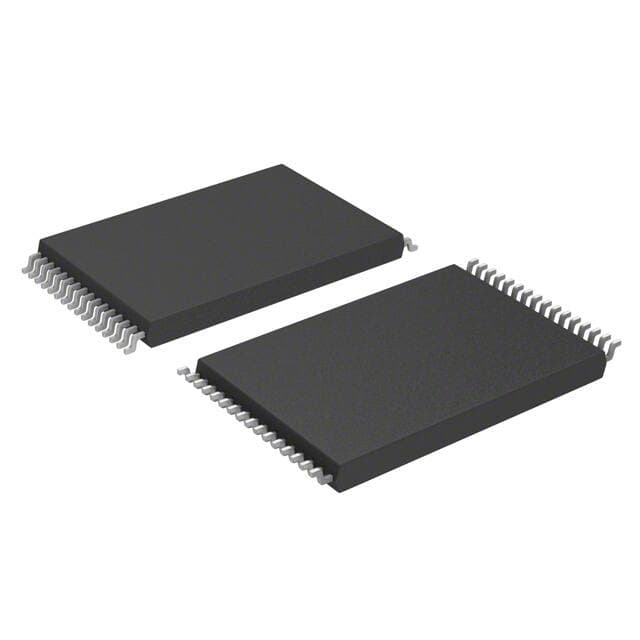

Microchip SST49LF080A-33-4C-WHE

Manufacturer No:

SST49LF080A-33-4C-WHE

Manufacturer:

Microchip

Package:

32-TFSOP (0.488, 12.40mm Width)

Description:

SST49 32 Pin Memory IC SST49 Series SST49LF080A 8 Mb kb 12.5mm mm 12mA mA 8b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SST49LF080A-33-4C-WHE information

Microchip SST49LF080A-33-4C-WHE technical specifications, attributes, parameters and parts with similar specifications to Microchip SST49LF080A-33-4C-WHE.

Type
Parameter

Factory Lead Time
7 Weeks

Contact Plating
Tin

Mounting Type
Surface Mount

Package / Case
32-TFSOP (0.488, 12.40mm Width)

Surface Mount
YES

Number of Pins
32

Operating Temperature
0°C~85°C TA

Packaging
Tray

Series
SST49

Published
2010

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
32

ECCN Code
3A991.B.1.A

Technology
CMOS

Voltage - Supply
3V~3.6V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
32

Operating Supply Voltage
3.3V

Supply Voltage-Max (Vsup)
3.6V

Supply Voltage-Min (Vsup)
3V

Interface
Parallel, SPI, Serial

Memory Size
8Mb 1M x 8

Nominal Supply Current
12mA

Memory Type
Non-Volatile

Max Supply Current
12mA

Clock Frequency
33MHz

Access Time
120ns

Memory Format
FLASH

Memory Interface
Parallel

Data Bus Width
8b

Organization
1MX8

Write Cycle Time - Word, Page
20μs

Address Bus Width
11b

Density
8 Mb

Sync/Async
Asynchronous

Word Size
8b

Programming Voltage
3V

Height
1.05mm

Length
12.5mm

Download datasheets and manufacturer documentation for Microchip SST49LF080A-33-4C-WHE.

SST49LF080A-33-4C-WHE Overview

A Non-Volatile-type memory can be classified as the memory type of this device. In addition, memory ics is available in a Tray case as well. Embedded in the 32-TFSOP (0.488, 12.40mm Width) case, memory ics is a single file. On the chip, there is an 8Mb 1M x 8 memory, which is the size of the chip's memory. There is a FLASH-format memory used in this device, which is the memory format used by mainstream devices. Featuring an extended operating temperature range of 0°C~85°C TA, this device allows it to be used in a variety of demanding applications. The device is capable of handling a supply voltage of 3V~3.6V volts. The recommended mounting type for memory ics is Surface Mount. A total of 32 terminations have been planted on the chip. The comprehensive working procedure of this part involves 1 functions. In order to power this memory device, 3.3V will be necessary. A clock frequency rotation within 33MHz is used for the ic memory chip to rotate data. Similar parts are frequently selected using the ic memory chip's base part number, SST49LF080A. A 32-pin package containing this memory device is used to house this device. The memory device in question has 32 pins, thus indicating that it has 32 memory locations that can be accessed. There is a note indicating that this memory chip operates at an 3.3V volt supply voltage. There is a nominal supply current rating of 12mA for this memory component. It is an important component of the SST49 series memory devices used in a variety of applications. A programming voltage of 3V is required to change a nonvolatile memory array's state. It can be operated with a current of up to 12mA at a maximum.

SST49LF080A-33-4C-WHE Features

Package / Case: 32-TFSOP (0.488, 12.40mm Width)
32 Pins
Operating Supply Voltage:3.3V

SST49LF080A-33-4C-WHE Applications

There are a lot of Microchip Technology
SST49LF080A-33-4C-WHE Memory applications.

supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
eDRAM
graphics card
