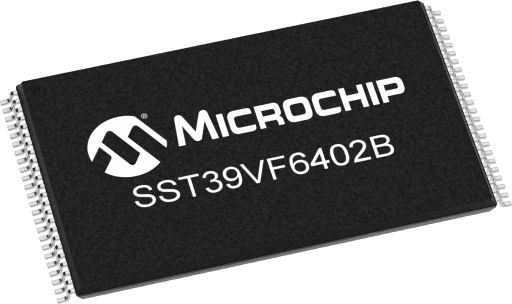

Microchip SST39VF6402B-70-4I-EKE

Manufacturer No:

SST39VF6402B-70-4I-EKE

Manufacturer:

Microchip

Package:

48-TFSOP (0.724, 18.40mm Width)

Description:

2.7V to 3.6V 64Mbit Multi-Purpose Flash

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SST39VF6402B-70-4I-EKE information

Microchip SST39VF6402B-70-4I-EKE technical specifications, attributes, parameters and parts with similar specifications to Microchip SST39VF6402B-70-4I-EKE.

Type
Parameter

Density
64 Mbit

Operating Voltage Min (V)
2.7

Operating Voltage Max (V)
3.6

Max. Clock Freq.
0 kHz

Read Access Speed
70 ns

Page Size (Bytes)
0

Write Protected
No

Endurance
100,000

Data Retention
100

Battery Backup
No

Download datasheets and manufacturer documentation for Microchip SST39VF6402B-70-4I-EKE.

AMD/Spansion compatible command set
The SST39VF6402B device is a 4M x16, CMOS Multi-Purpose Flash Plus (MPF+) manufactured with SST proprietary, high performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. This devices conforms to JEDEC standard pinouts for x16 memories and is command set compatible with Flash devices that support the AMD/Spansion command set, enabling customers to save time and resources in implementation.

Organized as 4M x16
2.7-3.6V Read/Erase/Write Operation
Endurance: 100,000 Cycles (Typical)
Greater than 100 years Data Retention
Active Current: 9 mA (typical)
Standby Current: 3 µA (typical)
Auto Low Power Mode: 3 µA (typical)
Sector-Erase – Uniform 2 KWord sectors, 18 ms (typical)
Block-Erase – Uniform 32 KWord blocks, 18 ms (typical)
Chip-Erase – 40 ms (typical)
Erase-Suspend/Erase-Resume
Word-Program Time: 7 µs (typical)
Automatic Write Timing with Internal VPP Generation
End-of-Write Detection– Toggle Bits/Data# Polling
Fast Read Access Time: 70 ns– 90 ns
Top Block-Protection (top 32 KWord)for SST39VF6402B
Bottom Block-Protection (bottom 32 KWord)for SST39VF6401B
Hardware Reset Pin (RST#)
Security-ID Feature– SST: 128 bits; User: 128 bits
Latched Address and Data
Flash EEPROM Pin Assignments
Address format is 11 bits, A10-A0
Block-Erase 6th Bus Write Cycle is 30H
Sector-Erase 6th Bus Write Cycle is 50H
48-lead TSOP (12mm x 20mm)
48-ball TFBGA (8mm x 10mm)
All non-Pb (lead-free) devices are RoHS compliant
