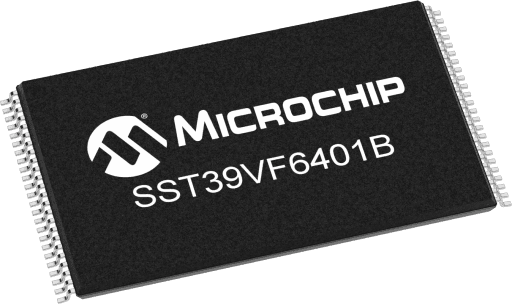

Microchip SST39VF6401B-70-4C-EKE

Manufacturer No:

SST39VF6401B-70-4C-EKE

Manufacturer:

Microchip

Package:

48-TFSOP (0.724, 18.40mm Width)

Description:

2.7 to 3.6V 1Mbit Multi-Purpose Flash

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SST39VF6401B-70-4C-EKE information

Microchip SST39VF6401B-70-4C-EKE technical specifications, attributes, parameters and parts with similar specifications to Microchip SST39VF6401B-70-4C-EKE.

Type
Parameter

Density
64 Mbit

Operating Voltage Min (V)
2.7

Operating Voltage Max (V)
3.6

Max. Clock Freq.
0 kHz

Read Access Speed
70 ns

Page Size (Bytes)
0

Write Protected
No

Endurance
100,000

Data Retention
0

Battery Backup
No

Download datasheets and manufacturer documentation for Microchip SST39VF6401B-70-4C-EKE.

The SST39VF6401B device is a 4M x16, CMOS Multi-Purpose Flash Plus (MPF+) manufactured with SST proprietary, high performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. The SST39VF6401B writes (Program or Erase) with a 2.7-3.6V power supply. This devices conforms to JEDEC standard pinouts for x16 memories and is command set compatible with Flash devices that support the AMD/Spansion command set, enabling customers to save time and resources in implementation.

Organized as 4M x16

Single Voltage Read and Write Operations – 2.7-3.6V

Superior Reliability – Endurance: 100,000 Cycles (Typical) – Greater than 100 years Data Retention

Low Power Consumption (typical values at 5 MHz) – Active Current: 9 mA (typical) – Standby Current: 3 µA (typical) – Auto Low Power Mode: 3 µA (typical)

Hardware Block-Protection/WP# Input Pin – Top Block-Protection (top 32 KWord) for SST39VF6402B – Bottom Block-Protection (bottom 32 KWord) for SST39VF6401B

Sector-Erase Capability – Uniform 2 KWord sectors

Block-Erase Capability – Uniform 32 KWord blocks

Chip-Erase Capability

Erase-Suspend/Erase-Resume Capabilities

Hardware Reset Pin (RST#)

Security-ID Feature – SST: 128 bits; User: 128 bits

Fast Read Access Time: – 70 ns – 90 ns

Latched Address and Data

Fast Erase and Word-Program: – Sector-Erase Time: 18 ms (typical) – Block-Erase Time: 18 ms (typical) – Chip-Erase Time: 40 ms (typical) – Word-Program Time: 7 µs (typical)

Automatic Write Timing – Internal VPP Generation

End-of-Write Detection – Toggle Bits – Data# Polling

CMOS I/O Compatibility

JEDEC Standard – Flash EEPROM Pin Assignments – Software command sequence compatibility - Address format is 11 bits, A10-A0 - Block-Erase 6th Bus Write Cycle is 30H - Sector-Erase 6th Bus Write Cycle is 50H

Packages Available– 48-lead TSOP (12mm x 20mm)

All non-Pb (lead-free) devices are RoHS compliant
