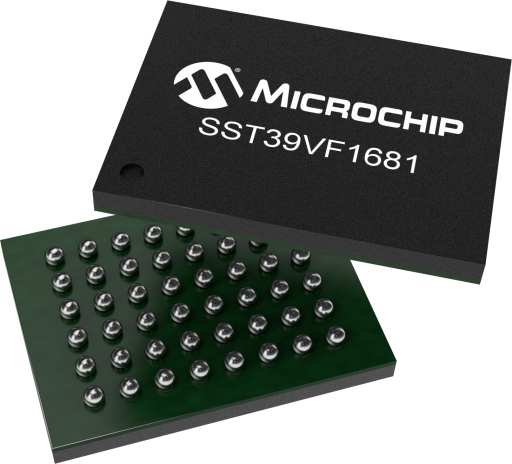

Microchip SST39VF1681-70-4C-EKE

Manufacturer No:

SST39VF1681-70-4C-EKE

Manufacturer:

Microchip

Package:

48-TFSOP (0.724, 18.40mm Width)

Description:

2.7V to 3.6V 16Mbit Multi-Purpose Flash

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SST39VF1681-70-4C-EKE information

Microchip SST39VF1681-70-4C-EKE technical specifications, attributes, parameters and parts with similar specifications to Microchip SST39VF1681-70-4C-EKE.

Type
Parameter

Density
16 Mbit

Operating Voltage Min (V)
2.7

Operating Voltage Max (V)
3.6

Max. Clock Freq.
0 MHz

Read Access Speed
70 ns

Page Size (Bytes)
0

Write Protected
No

Endurance
100,000

Data Retention
0

Battery Backup
No

Download datasheets and manufacturer documentation for Microchip SST39VF1681-70-4C-EKE.

The SST39VF1681 is a 2M x8 CMOS Multi-Purpose Flash Plus (MPF+) manufactured with SST proprietary, high performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. The SST39VF1681 writes (Program or Erase) with a 2.7-3.6V power supply. This device conforms to JEDEC standard pinouts for x8 memories.

Organized as 2M x8
Low Power Consumption (typical values at 5 MHz) – Active Current: 9 mA (typical) – Standby Current: 3 µA (typical) – Auto Low Power Mode: 3 µA (typical)
Hardware Block-Protection/WP# Input Pin – Top Block-Protection (top 64 KByte) for SST39VF1682 – Bottom Block-Protection (bottom 64 KByte) for SST39VF1681
Sector-Erase Capability – Uniform 4 KByte sectors
Block-Erase Capability – Uniform 64 KByte blocks
Chip-Erase Capability
Erase-Suspend/Erase-Resume Capabilities
Hardware Reset Pin (RST#)
Security-ID Feature – SST: 128 bits; User: 128 bits
Fast Erase and Byte-Program: – Sector-Erase Time: 18 ms (typical) – Block-Erase Time: 18 ms (typical) – Chip-Erase Time: 40 ms (typical) – Byte-Program Time: 7 µs (typical)
Packages Available – 48-ball TFBGA (6mm x 8mm) – 48-lead TSOP (12mm x 20mm)
All non-Pb (lead-free) devices are RoHS compliant
