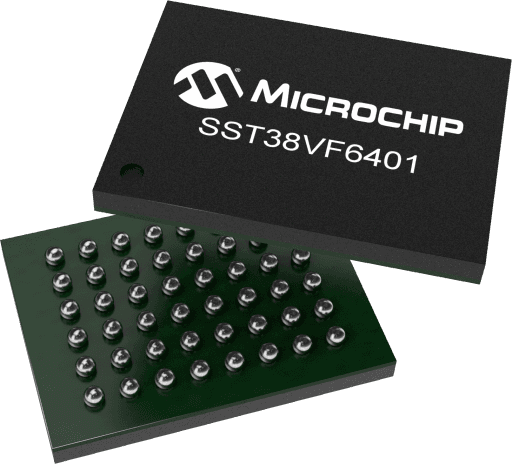

Microchip SST38VF6401-90-5I-EKE
Microchip SST38VF6401-90-5I-EKEMicrochip SST38VF6401-90-5I-EKE

Microchip SST38VF6401-90-5I-EKE

Manufacturer No:

SST38VF6401-90-5I-EKE

Manufacturer:

Microchip

Package:

48-TFSOP (0.724, 18.40mm Width)

Description:

2.7V to 3.6V 64Mbit pm Parallel Advanced MPF+

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SST38VF6401-90-5I-EKE information

Microchip SST38VF6401-90-5I-EKE technical specifications, attributes, parameters and parts with similar specifications to Microchip SST38VF6401-90-5I-EKE.

  • Type
  • Parameter
  • Density
  • 64 Mbit
  • Operating Voltage Min (V)
  • 2.7
  • Operating Voltage Max (V)
  • 3.6
  • Max. Clock Freq.
  • 0 kHz
  • Read Access Speed
  • 90 ns
  • Page Size (Bytes)
  • 8
  • Write Protected
  • No
  • Endurance
  • 100,000
  • Data Retention
  • 0
  • Battery Backup
  • No

Download datasheets and manufacturer documentation for Microchip SST38VF6401-90-5I-EKE.

Brochures:

Data Sheets:

The SST38VF6401 is a 4M x16 CMOS Advanced Multi-Purpose Flash Plus (Advanced MPF+) manufactured with SST proprietary, high-performance CMOS Super- Flash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. The SST38VF6401 writes (Program or Erase) with a 2.7-3.6V power supply. This device conforma to JEDEC standard pin assignments for x16 memories.

    • Organized as 4M x16
    • Single Voltage Read and Write Operations – 2.7-3.6V
    • Superior Reliability – Endurance: up to 100,000 Cycles minimum – Greater than 100 years Data Retention
    • Low Power Consumption (typical values at 5 MHz) – Active Current: 4 mA (typical) – Standby Current: 3 µA (typical) – Auto Low Power Mode: 3 µA (typical)
    • 128-bit Unique ID
    • Security-ID Feature – 256 Word, user One-Time-Programmable
    • Protection and Security Features – Hardware Boot Block Protection/WP# Input Pin, Uniform (32 KWord) and Non-Uniform (8 KWord) options available – User-controlled individual block (32 KWord) protection, using software only methods – Password protection
    • Hardware Reset Pin (RST#)
    • Fast Read and Page Read Access Times: – 90 ns Read access time – 25 ns Page Read access times - 4-Word Page Read buffer
    • Latched Address and Data
    • Fast Erase Times: – Sector-Erase Time: 18 ms (typical) – Block-Erase Time: 18 ms (typical) – Chip-Erase Time: 40 ms (typical)
    • Erase-Suspend/-Resume Capabilities
    • Fast Word and Write-Buffer Programming Times: – Word-Program Time: 7 µs (typical) – Write Buffer Programming Time: 1.75 µs / Word (typical) - 16-Word Write Buffer
    • Automatic Write Timing – Internal VPP Generation
    • End-of-Write Detection – Toggle Bits – Data# Polling – RY/BY# Output
    • CMOS I/O Compatibility
    • JEDEC Standard – Flash EEPROM Pinouts and command sets
    • CFI Compliant
    • Packages Available – 48-lead TSOP – 48-ball TFBGA
    • All non-Pb (lead-free) devices are RoHS compliant
