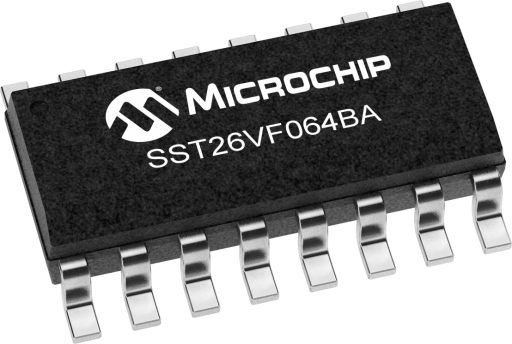

Microchip SST26VF064BAT-104I/MF

Manufacturer No:

SST26VF064BAT-104I/MF

Manufacturer:

Microchip

Package:

8-WDFN Exposed Pad

Description:

64Mb 2.7V TO 3.6V SQI Flash Memory

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SST26VF064BAT-104I/MF information

Microchip SST26VF064BAT-104I/MF technical specifications, attributes, parameters and parts with similar specifications to Microchip SST26VF064BAT-104I/MF.

Type
Parameter

Density
64 Mbit

Operating Voltage Min (V)
2.7

Operating Voltage Max (V)
3.6

Max. Clock Freq.
104 MHz

Page Size (Bytes)
256

Write Protected
No

Write Protect Scheme
Software Configurable

Endurance
100,000

Data Retention
100

Bus Modes
SPI,SDI,SQI

Battery Backup
No

Download datasheets and manufacturer documentation for Microchip SST26VF064BAT-104I/MF.

The SST26VF064BA Serial Quad I/O (SQI) flash device utilizes a 4-bit multiplexed I/O serial interface to boost performance while maintaining the compact form factor of standard serial flash devices. SST26VF064BA also support full command-set compatibility to traditional Serial Peripheral Interface (SPI) protocol. Operating at frequencies reaching 104 MHz, the SST26VF064BA enables minimum latency execute-in-place (XIP) capability without the need for code shadowing on an SRAM. The device’s high performance and reliability make it the ideal choice for Network Appliance, DSL and Cable Modems, Wireless Lan, Computing, Digital TV, Smart Meter, Server, Set Top Box, Automotive and other Industrial applications. Further benefits are achieved with SST’s proprietary, high-performance CMOS SuperFlash® technology, which significantly improves performance and reliability, and lowers power consumption for high bandwidth, compact designs.

The SST26VF064B default at power up is with WP# and HOLD pins enable and SIO2 and SIO3 pins disable allowing for SPI protocol operations without register configuration.
The SST26VF064BA default at power up with WP# and HOLD pins disable and SIO2 and SIO3 pins enable allowing for Quad I/O operations without register configuration.

Serial Interface Architecture- Nibble-wide multiplexed I/O’s with SPI-like serial command structure: Mode 0 and Mode 3,
x1/x2/x4 Serial Peripheral Interface (SPI) Protocol and SQI protocol
Burst Modes- Continuous linear burst, 8/16/32/64 Byte linear burst with wrap-around
Page-Program- 256 Bytes per page in x1 or x4 mode
Flexible Erase Capability- Uniform 4 KByte sectors, Four 8 KByte top and bottom parameter overlay blocks, One 32 KByte top and bottom overlay block, Uniform 64 KByte overlay blocks
Software Write Protection- Individual Block-Locking: 64 KByte blocks, two 32 KByte blocks, and eight 8 KByte parameter blocks
Low Power Consumption: Active Read current: 15 mA (typical @ 104 MHz), Standby Current: 15 µA (typical)
Packages Available: 8-contact WDFN (6mm x 5mm), 8-lead SOIC (208 mil), 16-lead SOIC (300 mil), 24-ball TBGA (6mm x 8mm)
Serial Flash Discoverable Parameters (SFDP)
All devices are RoHS compliant
