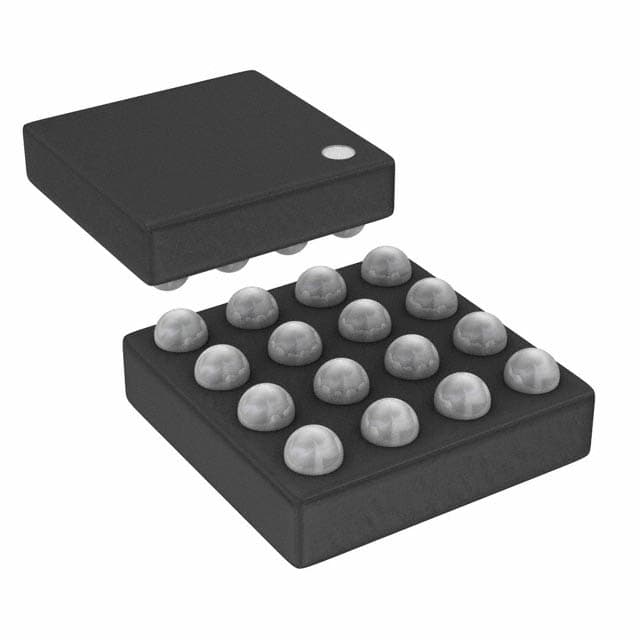

ADI SSM2380CBZ-REEL7

Manufacturer No:

SSM2380CBZ-REEL7

Manufacturer:

ADI

Package:

16-UFBGA, WLCSP

Description:

7mA mA 3.2W W Audio Amplifiers 5.5V V 16 pins 16-UFBGA, WLCSP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SSM2380CBZ-REEL7 information

ADI SSM2380CBZ-REEL7 technical specifications, attributes, parameters and parts with similar specifications to ADI SSM2380CBZ-REEL7.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 3 months ago)

Factory Lead Time
8 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-UFBGA, WLCSP

Number of Pins
16

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

JESD-609 Code
e3

Feature
Depop, Differential Inputs, I2C, Mute, Short-Circuit and Thermal Protection

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

ECCN Code
EAR99

Type
Class D

Terminal Finish
Matte Tin (Sn)

Subcategory
Audio/Video Amplifiers

Voltage - Supply
2.5V~5.5V

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Base Part Number
SSM2380

Pin Count
16

Efficiency
93 %

Output Type
2-Channel (Stereo)

Supply Voltage-Max (Vsup)
5.5V

Power Supplies
5V

Number of Channels
2

Operating Supply Current
6mA

Nominal Supply Current
7mA

Output Power
4W

Common Mode Rejection Ratio
55 dB

Supply Type
Single

Power Supply Rejection Ratio (PSRR)
85dB

Gain
6 dB

Max Output Power
3.2W

Signal to Noise Ratio (SNR)
100 dB

Max Output Power x Channels @ Load
3.2W x 2 @ 4 ?

Load Impedance
4Ohm

Height Seated (Max)
0.64mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for ADI SSM2380CBZ-REEL7.

SSM2380CBZ-REEL7 Overview

The device is embedded in 16-UFBGA, WLCSP .The device is in the form of Tape & Reel (TR) .As a consequence, there are 16 terminations, which involve ending a transmission line with a device matching the characteristic impedance of the line.This output is configured with 2-Channel (Stereo) .There is Class D type of electrical device associated with this device.Computers and other communication devices feature 16 pins, which are pronged contacts.A part of this electronic device is mounted in the way of Surface Mount .Its supply voltage is 2.5V~5.5V volts.2 channels are provided by the device.During operation, the value Depop, Differential Inputs, I2C, Mute, Short-Circuit and Thermal Protection can be ensured.A maximum operating temperature of -40°C~85°C TA should be maintained.The device contains 16 pins.The part belongs to Audio/Video Amplifiers .The SSM2380 family contains this object.A part of this electronic device is mounted in the way of Surface Mount .An electronic part such as this has a maximum output power of 3.2W kWh per hour.5.5V is the maximum supply voltage (Vsup).Supply type Single is assigned to this electronic part.The system is powered by a 5V battery.
