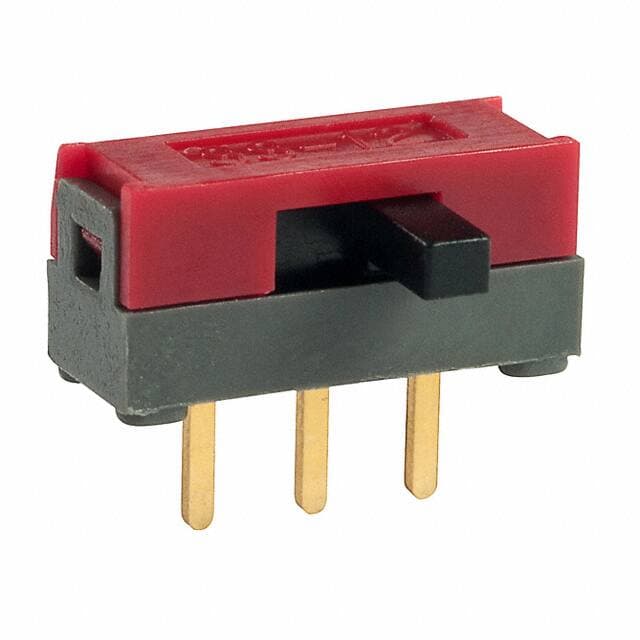

NKK Switches SS12SDH4

Manufacturer No:

SS12SDH4

Manufacturer:

NKK Switches

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SS12SDH4 information

NKK Switches SS12SDH4 technical specifications, attributes, parameters and parts with similar specifications to NKK Switches SS12SDH4.

Type
Parameter

Factory Lead Time
9 Weeks

Contact Material
Phosphor Bronze

Contact Plating
Gold, Silver

Mount
Through Hole

Mounting Type
Through Hole, Right Angle

Housing Material
Resin

Actuator Material
Polyamide (PA), Nylon

Operating Temperature
-15°C~60°C

Packaging
Tray

Series
SS

Published
2010

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
PC Pin

ECCN Code
EAR99

HTS Code
8536.50.90.50

Voltage - Rated DC
28V

Current Rating (Amps)
0.4VA AC/DC

Orientation
Horizontal

Depth
6.5mm

Contact Finish
Gold

Termination Style
PC Pin

Body Breadth
4 mm

Actuator Type
Standard

Circuit
SPDT

Switch Function
On-On

Contact Style
Shorting

Contact Current(DC)-Max
0.014A

Max Voltage Rating (AC)
28V

Max Current Rating
100mA

Electrical Life
10,000 Cycles

Max Voltage Rating (DC)
28V

Mechanical Life
10,000 Cycles

Switch Type
SLIDE SWITCH

Contact Current Rating
100mA

Illumination Type
Non-Illuminated

Contact Current(AC)-Max
0.014A

Contact (AC) Max Rating R Load
.014A@28VAC

Contact Timing
Shorting (MBB)

Contact (DC) Max Rating R Load
.014A@28VDC

Switch Travel
2.00mm

Length
10.2mm

Actuator Length
2.50mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NKK Switches SS12SDH4.
