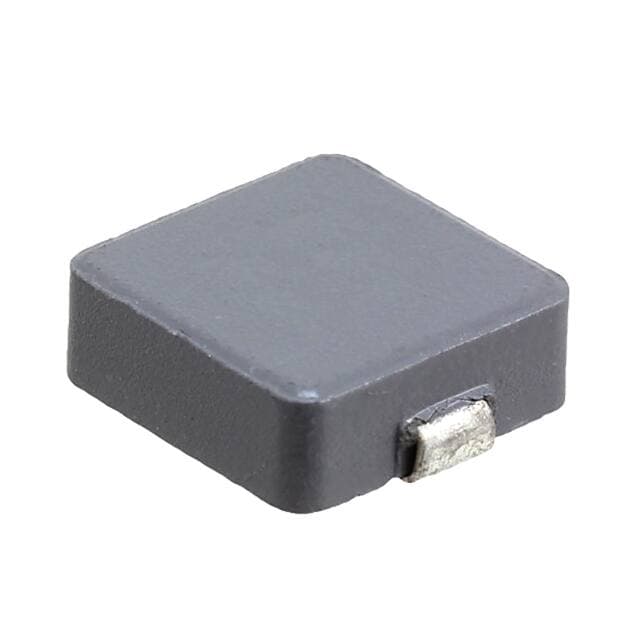

Bourns SRP1038A-R56M
Manufacturer No:
SRP1038A-R56M
Manufacturer:
Package:
Nonstandard
Description:
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
SRP1038A-R56M information
Bourns SRP1038A-R56M technical specifications, attributes, parameters and parts with similar specifications to Bourns SRP1038A-R56M.
- Type
- Parameter
- Factory Lead Time
- 18 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- Nonstandard
- Terminal Shape
- WRAPAROUND
- Material - Core
- Carbonyl Powder
- Shape/Size Description
- RECTANGULAR PACKAGE
- Operating Temperature
- -40°C~150°C
- Packaging
- Tape & Reel (TR)
- Series
- SRP1038A
- Published
- 2006
- Size / Dimension
- 0.433Lx0.394W 11.00mmx10.00mm
- Tolerance
- ±20%
- JESD-609 Code
- e3
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- Termination
- SMD/SMT
- ECCN Code
- EAR99
- Type
- Wirewound
- Terminal Finish
- Matte Tin (Sn)
- HTS Code
- 8504.50.80.00
- Packing Method
- TR, EMBOSSED, 13 INCH
- Shielding
- YES
- Depth
- 10.3mm
- Current Rating
- 25A
- Military Standard
- Not
- Inductance
- 560nH
- Test Frequency
- 100kHz
- DC Resistance (DCR)
- 1.8mOhm Max
- Max DC Current
- 25A
- Frequency - Self Resonant
- 70MHz
- Inductor Application
- POWER INDUCTOR
- Terminal Placement
- DUAL ENDED
- Q @ Freq
- 15 @ 100kHz
- Quality Factor-Min (at L-nom)
- 15
- Current - Saturation
- 40A
- Q Factor
- 15
- Case/Size Code
- 3939
- Inductance Tolerance
- 20%
- DC Current
- 25A
- RMS Current (Irms)
- 25A
- Height
- 3.8mm
- Height Seated (Max)
- 0.157 4.00mm
- REACH SVHC
- No SVHC
- RoHS Status
- RoHS Compliant
- Ratings
- AEC-Q200
Download datasheets and manufacturer documentation for Bourns SRP1038A-R56M.
