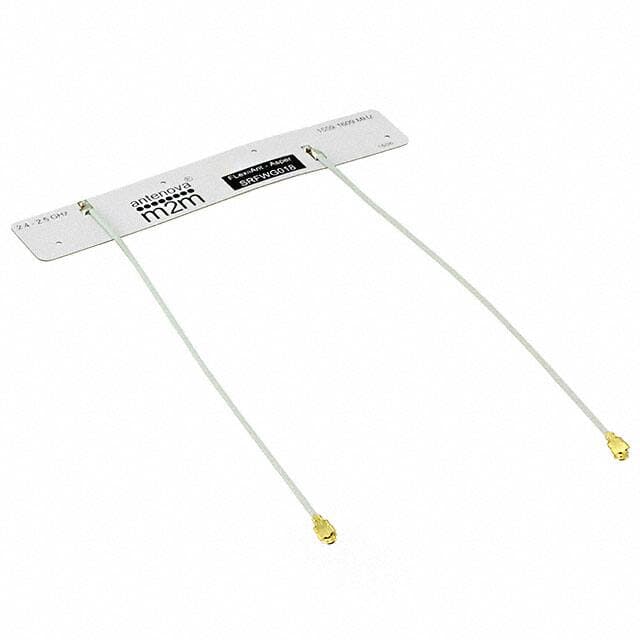

Antenova SRFWG018-200

Manufacturer No:

SRFWG018-200

Manufacturer:

Package:

Description:

2 Bands Flat Patch UHF 1GHz~2GHz UHF 2GHz~3GHz Adhesive U.FL (UMCC), IPEX MHF1 (2) 1.561GHz 1.575GHz 1.602GHz 2.4GHz 4.25dBi, 5.6dBi Bulk Bluetooth, GNSS, Wi-Fi

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SRFWG018-200 information

Antenova SRFWG018-200 technical specifications, attributes, parameters and parts with similar specifications to Antenova SRFWG018-200.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Adhesive

Packaging
Bulk

Series
Asper

Published
2016

Feature
Cable - 200mm

Part Status
Active

Termination
U.FL (UMCC), IPEX MHF1 (2)

Applications
Bluetooth, GNSS, Wi-Fi

Gain
4.25dBi, 5.6dBi

Frequency Range
1.559GHz~1.609GHz 2.4GHz~2.5GHz

RF Family/Standard
Bluetooth, Navigation, WiFi

Antenna Type
Flat Patch

VSWR
1.3, 1.4

Number of Bands
2

Frequency Group
UHF 1GHz~2GHz UHF 2GHz~3GHz

Frequency (Center/Band)
1.561GHz 1.575GHz 1.602GHz 2.4GHz

Return Loss
-18.4dB, -14.5dB

Height
152.4?m

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Antenova SRFWG018-200.

SRFWG018-200 Overview

The Adhesive allows it to be used for RF Antennas in general.Asper is a series of Antenna RFs.Bulk solid enclosure protects the RF modulator.

SRFWG018-200 Features

With Adhesive
Asper series

SRFWG018-200 Applications

There are a lot of Antenova
SRFWG018-200 RF Antennas applications.

Generators
Lightings
Rectifiers
Inverters
Satellites
Transmission
Cellphones
Laptops
Marine Navigation
Avionics
