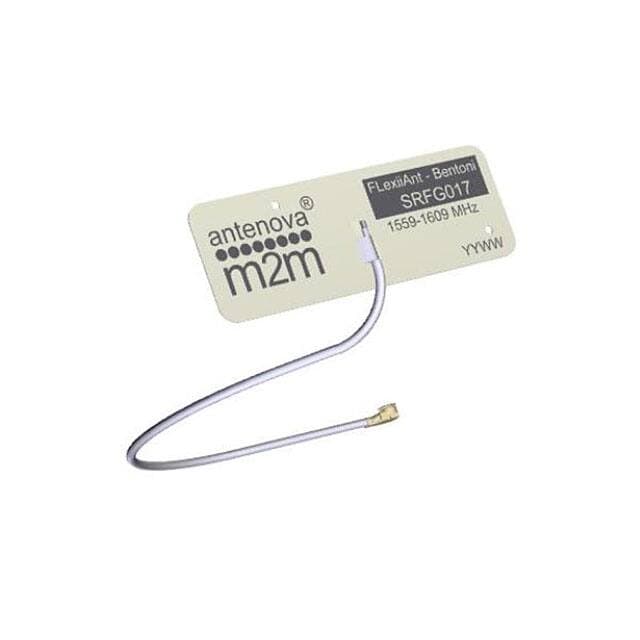

Antenova SRFG017-100

Manufacturer No:

SRFG017-100

Manufacturer:

Package:

Description:

1 Bands Flat Patch UHF 1GHz~2GHz Adhesive U.FL (UMCC), IPEX MHF1 1.561GHz 1.575GHz 1.602GHz 4dBi Bulk Beidou, Galileo, GLONASS, GPS

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SRFG017-100 information

Antenova SRFG017-100 technical specifications, attributes, parameters and parts with similar specifications to Antenova SRFG017-100.

Type
Parameter

Factory Lead Time
8 Weeks

Mounting Type
Adhesive

Packaging
Bulk

Series
Bentoni

Published
2016

Feature
Cable - 100mm

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

Termination
U.FL (UMCC), IPEX MHF1

Applications
Beidou, Galileo, GLONASS, GPS

Construction
COAXIAL

Operating Temperature (Max)
85°C

Operating Temperature (Min)
-40°C

Polarization
LINEAR

Gain
4dBi

Frequency Range
1.559GHz~1.609GHz

RF/Microwave Device Type
GPS ANTENNA

RF Family/Standard
Navigation

Antenna Type
Flat Patch

VSWR
1.45

Number of Bands
1

Frequency Group
UHF 1GHz~2GHz

Frequency (Center/Band)
1.561GHz 1.575GHz 1.602GHz

Return Loss
-14dB

Height
152.4?m

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Antenova SRFG017-100.

SRFG017-100 Overview

The Adhesive value makes it suitable for general RF Antennas.From the Bentoni series, it's a Antenna RF.A solid enclosure of Bulk surrounds RF modulator.

SRFG017-100 Features

With Adhesive
Bentoni series

SRFG017-100 Applications

There are a lot of Antenova
SRFG017-100 RF Antennas applications.

Solar flares
Static electricity
Cosmic noise
Generators
Lightings
Rectifiers
Inverters
Satellites
Transmission
Cellphones

User Guide
