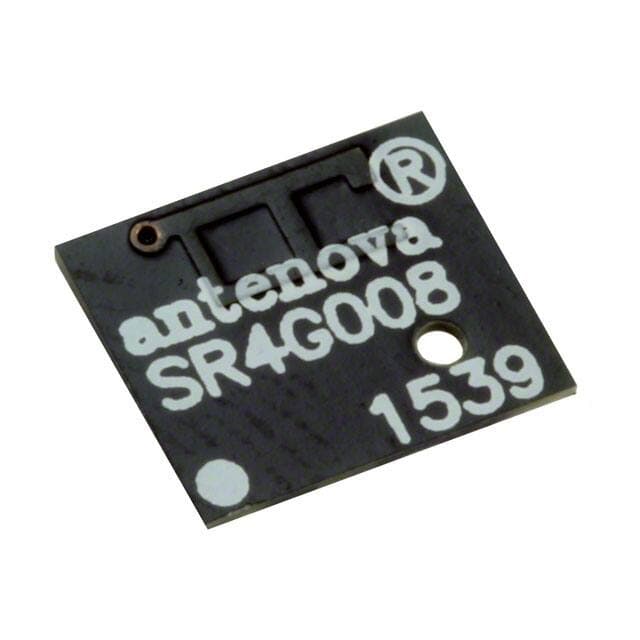

Antenova SR4G008

Manufacturer No:

SR4G008

Manufacturer:

Package:

Description:

1 Bands Chip UHF 1GHz~2GHz Surface Mount Solder 1.561GHz 1.575GHz 1.602GHz 3dBi Cut Tape (CT) Beidou, Galileo, GLONASS, GPS

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SR4G008 information

Antenova SR4G008 technical specifications, attributes, parameters and parts with similar specifications to Antenova SR4G008.

Type
Parameter

Factory Lead Time
8 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Packaging
Cut Tape (CT)

Series
Sinica

Published
2015

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Max Operating Temperature
140°C

Min Operating Temperature
-40°C

Applications
Beidou, Galileo, GLONASS, GPS

Construction
COMPONENT

Polarization
LINEAR

Gain
3dBi

Frequency Range
1.559GHz~1.609GHz

RF/Microwave Device Type
GPS ANTENNA

RF Family/Standard
Navigation

Antenna Type
Chip

VSWR
1.4

Number of Bands
1

Frequency Group
UHF 1GHz~2GHz

Frequency (Center/Band)
1.561GHz 1.575GHz 1.602GHz

Return Loss
-12dB

Omnidirectional
NO

Height
381?m

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Antenova SR4G008.

SR4G008 Overview

Surface Mount makes it suitable for general RF Antennas.It is a Antenna RF from the Sinica series.The RF modulator is packaged in Cut Tape (CT) solid enclosure.Its Surface Mount makes it qualified for most RF ic designs.According to test statistics, the minimal operating temeprature of the RF Antennas would be -40°C.The RF Antennas should not operate in an environment where the temperature is higher than 140°C.

SR4G008 Features

With Surface Mount
Sinica series
Above 140°C degrees Celsius

SR4G008 Applications

There are a lot of Antenova
SR4G008 RF Antennas applications.

Lightning strikes
Solar flares
Static electricity
Cosmic noise
Generators
Lightings
Rectifiers
Inverters
Satellites
Transmission
