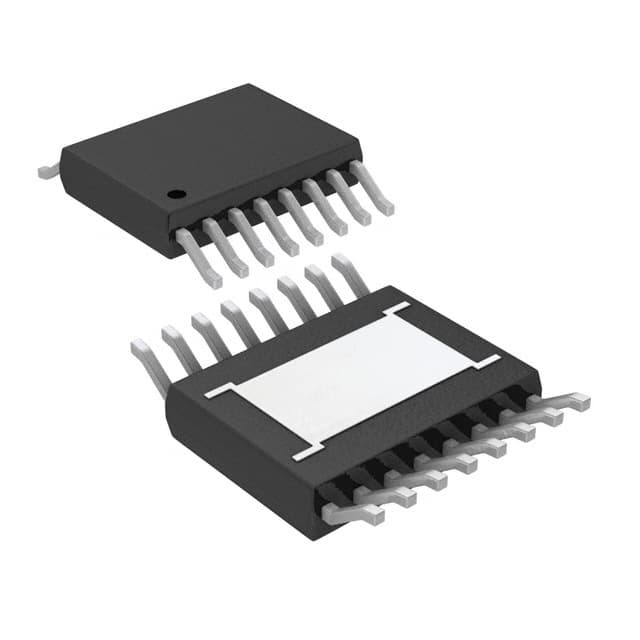

SANKEN SPI-8001TW
Manufacturer No:
SPI-8001TW
Manufacturer:
Package:
16-SOIC (0.295, 7.50mm Width) Exposed Pad
Description:
16 Terminals 4V DC DC Voltage Regulator DUAL SWITCHING CONTROLLER 2 Outputs 250kHz Tape & Reel (TR) 1.5A 16-SOIC (0.295, 7.50mm Width) Exposed Pad
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
SPI-8001TW information
SANKEN SPI-8001TW technical specifications, attributes, parameters and parts with similar specifications to SANKEN SPI-8001TW.
- Type
- Parameter
- Factory Lead Time
- 12 Weeks
- Mounting Type
- Surface Mount
- Package / Case
- 16-SOIC (0.295, 7.50mm Width) Exposed Pad
- Surface Mount
- YES
- Operating Temperature
- -30°C~135°C TJ
- Packaging
- Tape & Reel (TR)
- Published
- 2005
- Pbfree Code
- yes
- Part Status
- Last Time Buy
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 16
- ECCN Code
- EAR99
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- JESD-30 Code
- R-PDSO-G16
- Function
- Step-Down
- Number of Outputs
- 2
- Voltage - Input (Max)
- 20V
- Output Type
- Adjustable
- Voltage - Input (Min)
- 4V
- Input Voltage-Nom
- 15V
- Analog IC - Other Type
- DUAL SWITCHING CONTROLLER
- Output Configuration
- Positive
- Current - Output
- 1.5A
- Topology
- Buck
- Frequency - Switching
- 250kHz
- Control Technique
- PULSE WIDTH MODULATION
- Synchronous Rectifier
- No
- Switcher Configuration
- PHASE-SHIFT
- Voltage - Output (Max)
- 16V
- Width
- 7.5mm
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for SANKEN SPI-8001TW.
Datasheets:
SPI-8001TW Overview
optimized performance is achieved by utilizing the Tape & Reel (TR) package in this voltage regulator. Throughout this voltage regulator, there are 16 terminations. There are two types of analog ICs in this voltage regulator 12v: DUAL SWITCHING CONTROLLER ICs, which are the ones used in older voltage regulator 12vs. The space-saving 16-SOIC (0.295, 7.50mm Width) Exposed Pad package is available for this voltage regulator. The voltage regulator 12v has 2 outputs. The adjusting voltage regulator generates Adjustable output. As the name implies, this voltage regulator 12v is designed for mounting on a Surface Mount bracket. During switching regulator operation, the operating temperature should remain at -30°C~135°C TJ. This voltage regulator 12v reaches a switching frequency of 250kHz. The regulator is capable of operating with a dc to dc voltage regulator's minimum input voltage of 4V. As shown in the table below, adjusting voltage regulator's output voltage (Min/Fixed) is equal to 1V. A maximum design flexibility is provided by the 1.5A output current of voltage regulator. There is a maximum input voltage of 20V for this voltage regulator 12v. The voltage regulator 12v is designed to provide a nominal input voltage of 15V for operation. By using the 16V's maximal output voltage, adjusting voltage regulator can operate easily.
SPI-8001TW Features
2 outputs
SPI-8001TW Applications
There are a lot of Sanken
SPI-8001TW Voltage Regulators applications.
- CMM
- Various precision measuring instruments
- Various precision measuring detectors
- Flaw detection equipment
- Balance equipment
- Industrial robots
- Industrial controllers
- Die casting equipment
- Injection molding machinery
- Various CNC machine tools
