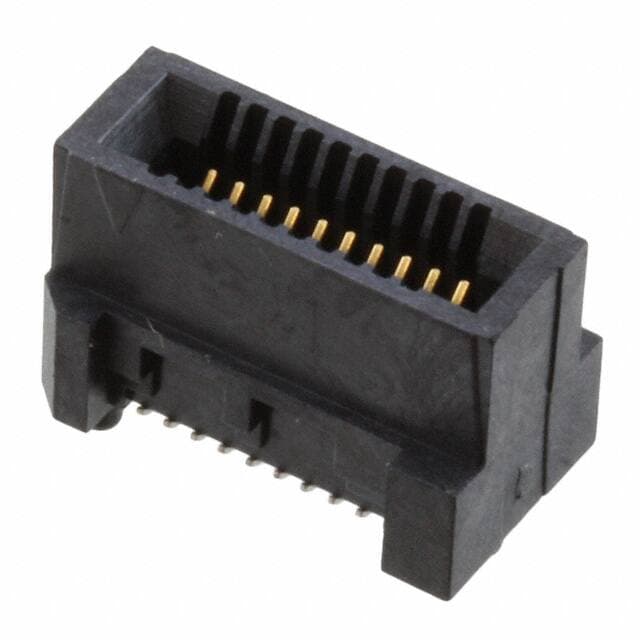

3M SPD08-020-RB-TR
3M SPD08-020-RB-TR

3M SPD08-020-RB-TR

Manufacturer No:

SPD08-020-RB-TR

Manufacturer:

3M

Package:

Molded

Description:

Female Black 0.031 0.80mm Copper Alloy 2 Rows Tape & Reel (TR) Solder Gold 20 Positions Liquid Crystal Polymer (LCP), Glass Filled

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SPD08-020-RB-TR information

3M SPD08-020-RB-TR technical specifications, attributes, parameters and parts with similar specifications to 3M SPD08-020-RB-TR.

  • Type
  • Parameter
  • Factory Lead Time
  • 7 Weeks
  • Contact Material
  • Copper Alloy
  • Contact Plating
  • Gold, Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • Molded
  • Housing Material
  • Polymer
  • Material - Insulation
  • Liquid Crystal Polymer (LCP), Glass Filled
  • Operating Temperature
  • -55°C~125°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • SPD08
  • Published
  • 2011
  • Feature
  • Board Guide
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Cantilever
  • Number of Positions
  • 20
  • Max Operating Temperature
  • 125°C
  • Min Operating Temperature
  • -55°C
  • Color
  • Black
  • Number of Rows
  • 2
  • Gender
  • Female
  • Contact Type
  • Cantilever
  • Orientation
  • Straight
  • Contact Finish
  • Gold
  • Housing Color
  • Black
  • Contact Resistance
  • 50mOhm
  • Card Type
  • Non Specified - Dual Edge
  • Read Out
  • Dual
  • Number of Positions/Bay/Row
  • 10
  • Max Voltage Rating (AC)
  • 50V
  • Max Current Rating
  • 300mA
  • Contact Finish Thickness
  • 30.0?in 0.76?m
  • Card Thickness
  • 0.062 1.57mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for 3M SPD08-020-RB-TR.

Datasheets:

ConflictMineralStatement:

SPD08-020-RB-TR Overview


The material was packaged according to the specifications provided by Tape & Reel (TR).You should mount it type Surface Mount.Connecting the device uses connector socket Cantilever.There are Board Guide features on this device.SPD08 indicates that the device belongs to the series.Stable operation can be achieved at a maximum temperature of 125°C°C.As a minimum, it must be operated at a temperature of -55°C degrees Celsius.Molded package is compatible with it.

SPD08-020-RB-TR Features


SPD08 series


SPD08-020-RB-TR Applications


There are a lot of 3M
SPD08-020-RB-TR Edgeboard Connectors applications.


  • CMOS Image sensors for mobile applications
  • Medical Instrumentation and medical imaging
  • Music recording
  • Digital signal processing
  • Scientific instruments
  • Rotary encoder
  • Displaying
  • Transducer
  • Microcontrollers.
  • Digital Storage Oscilloscope
