NXP SPC5777CCK3MME3
NXP SPC5777CCK3MME3

NXP SPC5777CCK3MME3

Manufacturer No:

SPC5777CCK3MME3

Manufacturer:

NXP

Package:

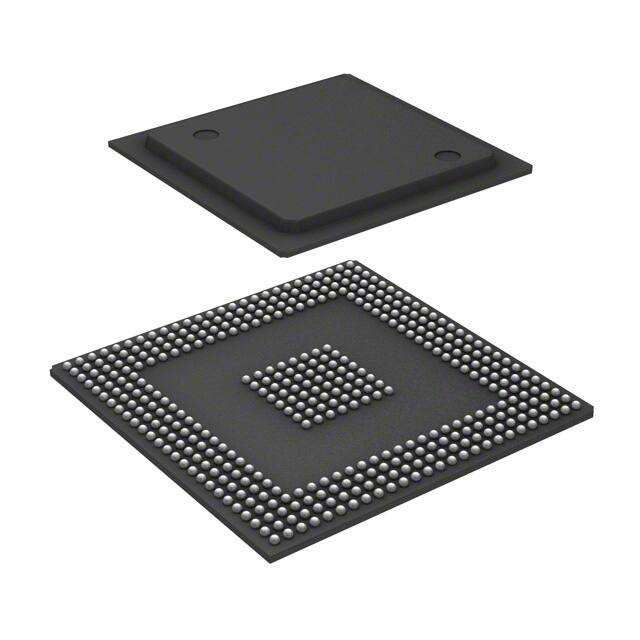

416-BGA

Description:

8MB 8M x 8 FLASH e200z7 32-Bit Tri-Core Microcontroller MPC57xx Series 416-BGA

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SPC5777CCK3MME3 information

NXP SPC5777CCK3MME3 technical specifications, attributes, parameters and parts with similar specifications to NXP SPC5777CCK3MME3.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 416-BGA
  • Surface Mount
  • YES
  • Operating Temperature
  • -40°C~125°C TA
  • Packaging
  • Tray
  • Series
  • MPC57xx
  • Published
  • 2012
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 416
  • ECCN Code
  • 5A992
  • Additional Feature
  • ALSO OPERATES @ 1.2V TO 1.38V WHEN LVD/HVD DISABLED, 70-CH QADC AND 16-BIT SD ADC AVAILABLE.
  • HTS Code
  • 8542.31.00.01
  • Technology
  • CMOS
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • BALL
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Terminal Pitch
  • 1mm
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • JESD-30 Code
  • S-PBGA-B416
  • Supply Voltage-Max (Vsup)
  • 1.32V
  • Supply Voltage-Min (Vsup)
  • 1.2V
  • Oscillator Type
  • Internal
  • RAM Size
  • 512K x 8
  • Voltage - Supply (Vcc/Vdd)
  • 3V~5.5V
  • uPs/uCs/Peripheral ICs Type
  • MICROCONTROLLER, RISC
  • Core Processor
  • e200z7
  • Peripherals
  • DMA, LVD, POR, Zipwire
  • Clock Frequency
  • 40MHz
  • Program Memory Type
  • FLASH
  • Core Size
  • 32-Bit Tri-Core
  • Program Memory Size
  • 8MB 8M x 8
  • Connectivity
  • CANbus, EBI/EMI, Ethernet, FlexCANbus, LINbus, SCI, SPI
  • Bit Size
  • 32
  • Data Converter
  • A/D 16b Sigma-Delta, eQADC
  • Has ADC
  • YES
  • DMA Channels
  • YES
  • PWM Channels
  • YES
  • DAC Channels
  • NO
  • ROM (words)
  • 8388608
  • On Chip Program ROM Width
  • 8
  • RAM (bytes)
  • 524288
  • Length
  • 27mm
  • Height Seated (Max)
  • 2.02mm
  • Width
  • 27mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NXP SPC5777CCK3MME3.

Datasheets:

Environmental Information:

SPC5777CCK3MME3  Description


The SPC5777CCK3MME3 MCU  is from the MPC5777C series based on three dual issues, 32-bit CPU core complexes (e200z7), two of which run in lockstep.



SPC5777CCK3MME3 Features


  • 16 hardware semaphores

  • 3-channel CRC module

  • 8 MB on-chip flash memory

  • 512 KB on-chip general-purpose SRAM including 64 KB standby RAM

  • Two multichannel direct memory access controllers (eDMA)

  • Dual-core Interrupt Controller (INTC)

  • Dual phase-locked loops (PLLs) with stable clock domain for peripherals and frequency modulation (FM) domain for computational shell

  • Crossbar Switch architecture for concurrent access to peripherals, flash memory, or RAM from multiple bus masters with End-To-End ECC

  • External Bus Interface (EBI) for calibration and application use

  • System Integration Unit (SIU)

  • Error Injection Module (EIM) and Error Reporting Module (ERM)

  • Four protected port output (PPO) pins

  • Boot Assist Module (BAM) supports serial bootload via CAN or SCI

  • Three second-generation Enhanced Time Processor Units (eTPUs)



SPC5777CCK3MME3 Applications


  • Industrial
