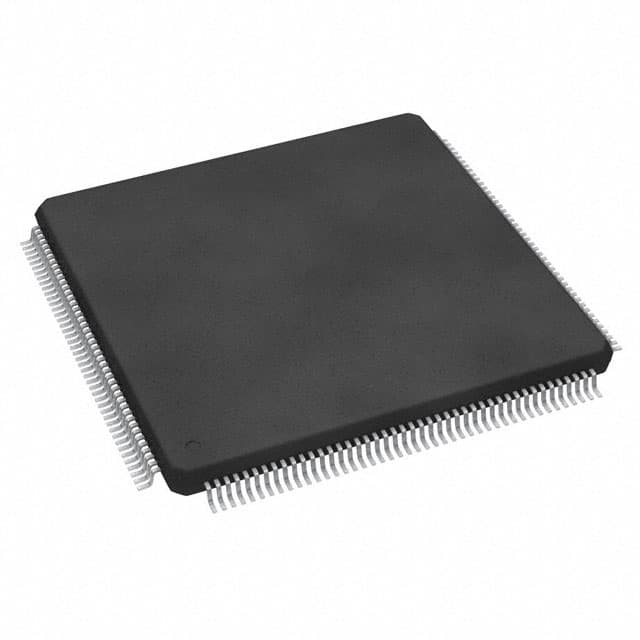

ST SPC574K72E7C6FAR

Manufacturer No:

SPC574K72E7C6FAR

Manufacturer:

Package:

176-LQFP Exposed Pad

Description:

2.5MB 2.5M x 8 FLASH e200z2, e200z4, e200z4 32-Bit Tri-Core Microcontroller Automotive, AEC-Q100 MPC57xx Series SPC574 3.3V 176-LQFP Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SPC574K72E7C6FAR information

ST SPC574K72E7C6FAR technical specifications, attributes, parameters and parts with similar specifications to ST SPC574K72E7C6FAR.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 7 months ago)

Factory Lead Time
35 Weeks

Mounting Type
Surface Mount

Package / Case
176-LQFP Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~125°C TA

Packaging
Tray

Series
Automotive, AEC-Q100 MPC57xx

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
176

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Reach Compliance Code
compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
SPC574

Supply Voltage-Max (Vsup)
3.63V

Supply Voltage-Min (Vsup)
2.97V

Oscillator Type
Internal

Speed
80MHz/160MHz

RAM Size
64K x 8

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC

Core Processor
e200z2, e200z4, e200z4

Peripherals
DMA, LVD, POR, Zipwire

Clock Frequency
40MHz

Program Memory Type
FLASH

Core Size
32-Bit Tri-Core

Program Memory Size
2.5MB 2.5M x 8

Connectivity
CANbus, Ethernet, FlexRay, I2C, LINbus, SPI, UART/USART

Bit Size
32

Data Converter
A/D 12b SAR, 16b Sigma-Delta

Has ADC
YES

DMA Channels
YES

PWM Channels
NO

EEPROM Size
64K x 8

Length
24mm

Width
24mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ST SPC574K72E7C6FAR.

Datasheets:

stmicroelectronics-spc574k72e7c6fay-datasheets-3424.pdf

SPC574K72E7C6FAR Overview

176-LQFP Exposed Pad-packages are available. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. There is a 32-Bit Tri-Core core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of -40°C~125°C TA for this Microcontroller. An electrical component of this type belongs to the Automotive, AEC-Q100 MPC57xx series. This program memory has a size of 2.5MB 2.5M x 8, which indicates what the size of the program memory is. e200z2, e200z4, e200z4 Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER, RISC power supply/socket/peripheral ICs category. This chip has a total of 176 terminations on MCU chip. You get a 32-bit size. This Microcontroller chip is powered by 3.3V volts. There are YES DMA channels on this Microcontroller chip. The base part number SPC574 provides alternatives. Using the PWM channel NO, the device works with the motor. It's got a 40MHz clock.

SPC574K72E7C6FAR Features

176-LQFP Exposed Pad package
Mounting type of Surface Mount

SPC574K72E7C6FAR Applications

There are a lot of STMicroelectronics
SPC574K72E7C6FAR Microcontroller applications.

Television
Heater/Fan
Calculator
Kindle
Christmas lights
3D printers
Washing machine
Microwave ovens
Home appliances
Home video and audio
