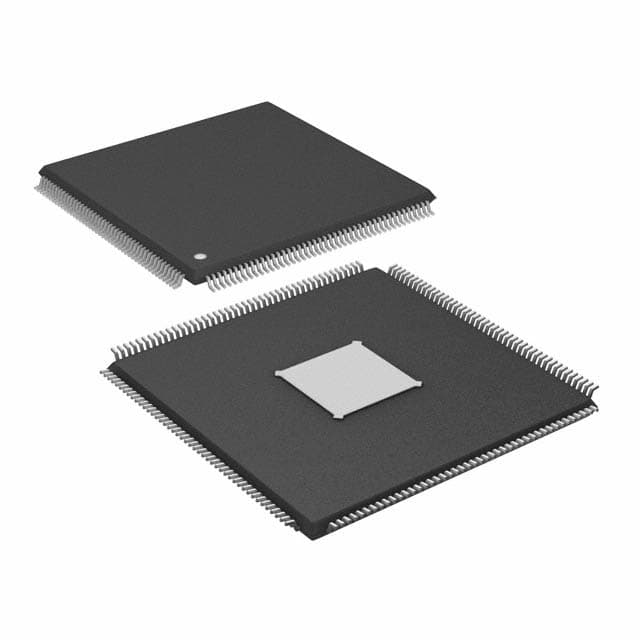

NXP SPC5747GTK1MKU6R

Manufacturer No:

SPC5747GTK1MKU6R

Manufacturer:

NXP

Package:

176-LQFP Exposed Pad

Description:

4MB 4M x 8 FLASH e200z2, e200z4, e200z4 32-Bit Tri-Core Microcontroller MPC57xx Series 1.2V 176-LQFP Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SPC5747GTK1MKU6R information

NXP SPC5747GTK1MKU6R technical specifications, attributes, parameters and parts with similar specifications to NXP SPC5747GTK1MKU6R.

Type
Parameter

Factory Lead Time
17 Weeks

Mounting Type
Surface Mount

Package / Case
176-LQFP Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~125°C TA

Packaging
Tape & Reel (TR)

Series
MPC57xx

Part Status
Active

Number of Terminations
176

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Supply Voltage
1.2V

Terminal Pitch
0.5mm

JESD-30 Code
S-PQFP-G176

Supply Voltage-Max (Vsup)
1.32V

Supply Voltage-Min (Vsup)
1.08V

Oscillator Type
Internal

Number of I/O
129

Speed
80MHz/160MHz

RAM Size
768K x 8

Voltage - Supply (Vcc/Vdd)
3V~5.5V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC

Core Processor
e200z2, e200z4, e200z4

Clock Frequency
40MHz

Program Memory Type
FLASH

Core Size
32-Bit Tri-Core

Program Memory Size
4MB 4M x 8

Connectivity
CANbus, Ethernet, I2C, LINbus, SAI, SPI, USB, USB OTG

Bit Size
32

Data Converter
A/D 80x10b, 64x12b

Has ADC
YES

DMA Channels
YES

PWM Channels
NO

DAC Channels
NO

On Chip Program ROM Width
8

Screening Level
ISO 26262

Length
24mm

Height Seated (Max)
1.6mm

Width
24mm

Download datasheets and manufacturer documentation for NXP SPC5747GTK1MKU6R.

Environmental Information:

nxpusainc-tef6657hnv102k-environmentalinformation-9391.pdf

SPC5747GTK1MKU6R Overview

Packaged in a 176-LQFP Exposed Pad format. A total of 129 I/Os are on the Microcontroller. Surface Mount is the mounting type of the Microcontroller that is attached to the panel. This Microcontroller is based on a core called 32-Bit Tri-Core. The type of its program memory is FLASH. In this Microcontroller, temperature is controlled within the range -40°C~125°C TA. A MPC57xx series electrical component is used in this application. This program has a program memory of 4MB 4M x 8 bytes, which is the size of the program. With a e200z2, e200z4, e200z4 Core Processor, Microcontroller is fast and efficient. ICs for MICROCONTROLLER, RISC uPs/uCs/peripheral parts. There are 176 terminations on the IC chip, which means there are 176 terminations on the integrated circuit chip. In addition, MCU chip comes with a 32-bit size. Microcontroller chip has outputs of 1.2V volts. The system has YES channels for DMA communication. This MCU Chip uses NO PWM channels to operate. It runs on a 40MHz clock.
