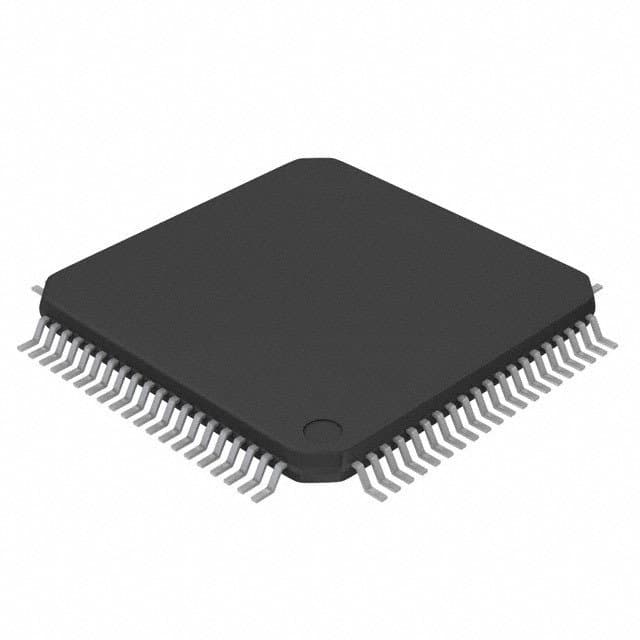

MAXLINEAR SP505ACM-L

Manufacturer No:

SP505ACM-L

Manufacturer:

MAXLINEAR

Package:

LQFP

Description:

80 Terminations 5V 80 Pin Receivers 7 Bits 7 Functions Min 4.75V V Max 5.25V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SP505ACM-L information

MAXLINEAR SP505ACM-L technical specifications, attributes, parameters and parts with similar specifications to MAXLINEAR SP505ACM-L.

Type
Parameter

Mount
Surface Mount

Package / Case
LQFP

Number of Pins
80

Weight
639.990485mg

JESD-609 Code
e3

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
80

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Line Driver or Receivers

Technology
BICMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
7

Supply Voltage
5V

Terminal Pitch
0.65mm

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
80

Qualification Status
Not Qualified

Operating Supply Voltage
5V

Temperature Grade
COMMERCIAL

Interface
RS-232, RS-422, RS-485

Max Supply Voltage
5.25V

Min Supply Voltage
4.75V

Power Dissipation-Max
2W

Operating Supply Current
300mA

Data Rate
12 Mbps

Differential Output
YES

Input Characteristics
DIFFERENTIAL

Driver Number of Bits
7

Number of Transceivers
1

Receive Delay-Max
500 ns

Transmit Delay-Max
5000 ns

Output Low Current-Max
0.0032A

Number of Receivers
7

Out Swing-Min
2 V

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for MAXLINEAR SP505ACM-L.

Datasheets:

exar-sp505acml-datasheets-9489.pdf

exar-sp505acml-datasheets-9490.pdf

SP505ACM-L Overview

The enhanced LQFP package makes it an excellent LED driver.Wide receiver can operate within the range of 5V supply voltages efficiently.This integrated circuit has 80 terminations designed for driving and receiving signals from data.ICs that are packaged with market standard pinouts are available on the market.Wide receiver with enhanced power dissipation control, 80-pin.Package size is drastically reduced by downsizing ICs and mounting them in high-density Surface Mount arrays.An important feature of this ic receiver was its 7-bit resolution capability.As a result of the design of this transceiver module, the input voltage supply is designed to operate at 5V.3 volts.An additional subcategory named Line Driver or Receivers can be created for this rf transceiver module.It is designed to be operated from a 5V power supply, so the module isolated transceiver will work effectively.This IC implements 1 transceivers overall.There are also 7 receivers in it as well.70°C is the minimum operating transceiver module's temperature.There must be no minimum operating temperature for this optical transceiver, which is 0°C.With this integrating circuit you can drive LEDs of a voltage of up to 300mA. It can be used to drive large displays.A transceiver's maximum supply voltage of 5.25V is rated for this IC and it is a dual channel IC.There is a minimum required supply voltage of 4.75V for this line driver ic.

SP505ACM-L Features

80 pin count
80 pins
5V power supply

SP505ACM-L Applications

There are a lot of Exar Corporation
SP505ACM-L Drivers/Receivers/Transceivers applications.

Desktop PC
Notebook
Pocket PC
Desktop radio
Clock radio
Tuner
Portable radio
Car radio
Satellite radio receiver
Shortwave receiver
