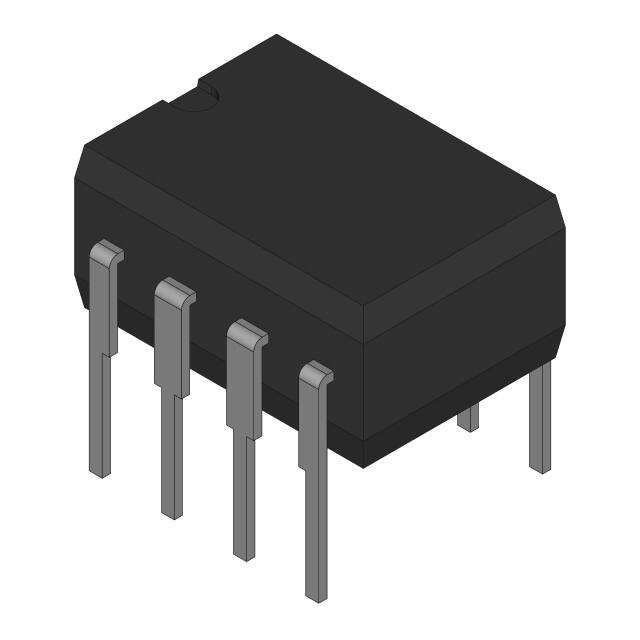

Rochester SP3481EP-L

Manufacturer No:

SP3481EP-L

Manufacturer:

Rochester

Package:

Description:

8 Terminations Receivers 1 Bits 1/1 Drivers/Receivers 1 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SP3481EP-L information

Rochester SP3481EP-L technical specifications, attributes, parameters and parts with similar specifications to Rochester SP3481EP-L.

Type
Parameter

Mounting Type
Through Hole

Surface Mount
NO

Supplier Device Package
8-DIP

Operating Temperature
-40°C~85°C

Series
SP3481

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
NOT APPLICABLE

Number of Terminations
8

Type
Transceiver

Terminal Finish
TIN

Additional Feature
CAN ALSO OPERATE WITH A 5V SUPPLY

Technology
BICMOS

Voltage - Supply
3.3V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
NOT APPLICABLE

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
2.54mm

Time@Peak Reflow Temperature-Max (s)
NOT APPLICABLE

Pin Count
8

JESD-30 Code
R-PDIP-T8

Qualification Status
COMMERCIAL

Differential Output
YES

Protocol
RS422, RS485

Input Characteristics
DIFFERENTIAL SCHMITT TRIGGER

Number of Drivers/Receivers
1/1

Driver Number of Bits
1

Receiver Number of Bits
1

Duplex
Half

Interface Standard
EIA-422; EIA-485

Receive Delay-Max
100 ns

Transmit Delay-Max
60 ns

Length
9.5885mm

Height Seated (Max)
5.334mm

Width
7.62mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Rochester SP3481EP-L.

SP3481EP-L Overview

The Transceiver can transceiver type enables this part to be used in a wide range of applications.PCB or development board with Through Hole-type connectors can accommodate this wide receiver.A differential driver like this uses 3.3V of power.The field can have up to 1/1 eligible receivers/drivers at once when using this electronic part.IC receiver's like this are designed for applications requiring a -40°C~85°C operating temperature.An output voltage range of 3.3V is sufficient to run this line driver ic efficiently.There are 8 terminations in this wide receiver so that signals can be driven from the data and received.The transceiver is packaged with 8 market standard pinouts so that it can be easily used.In this ic receiver, the resolution was able to be set to a maximum of 1 bits.In the case of this receiver, a resolution of 1 bits is typically specified.A CAN ALSO OPERATE WITH A 5V SUPPLY function is also included in this optical transceiver module, which improves stability and accuracy of signal management.There is a 8-DIP supplier package included with wide receiver.This line driver integrating circuit represents a power-saving technique that is part of the SP3481 series.

SP3481EP-L Features

8 pin count
SP3481 series

SP3481EP-L Applications

There are a lot of Rochester Electronics, LLC
SP3481EP-L Drivers/Receivers/Transceivers applications.

Wired telephone
Cordless telephone
Desktop PC
Notebook
Pocket PC
Desktop radio
Clock radio
Tuner
Portable radio
Car radio
