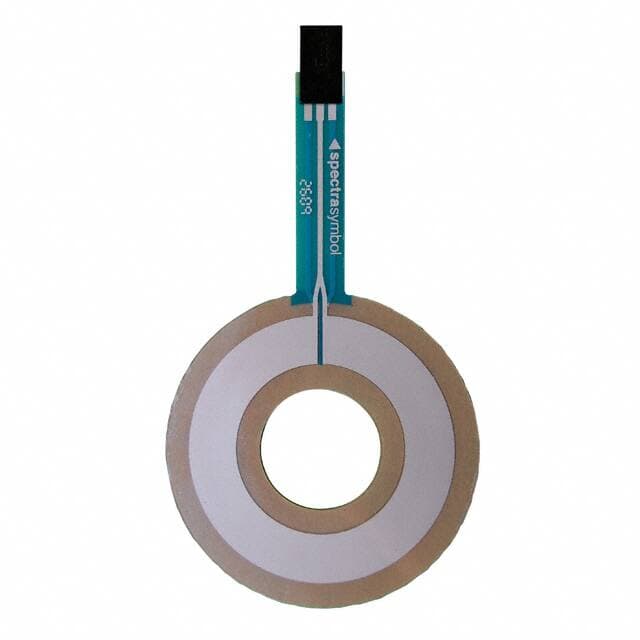

Spectra Symbol SP-R-0046-353-103-3%-RH

Manufacturer No:

SP-R-0046-353-103-3%-RH

Manufacturer:

Spectra Symbol

Package:

Circle Sensor Strip

Description:

SoftPot Series For Measuring Rotary Position Connector Flexible Membrane - Rotary -40°C~50°C Resistive ±3% 0° ~ 353° Resistive Circle Sensor Strip

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SP-R-0046-353-103-3%-RH information

Spectra Symbol SP-R-0046-353-103-3%-RH technical specifications, attributes, parameters and parts with similar specifications to Spectra Symbol SP-R-0046-353-103-3%-RH.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Custom

Package / Case
Circle Sensor Strip

Operating Temperature
-40°C~50°C

Packaging
Bulk

Series
SoftPot

Published
2009

Tolerance
20%

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Connector

Resistance
10kOhms

Max Operating Temperature
50°C

Min Operating Temperature
-40°C

Technology
Resistive

Output
Resistive

Termination Style
Connector

Actuator Type
Flexible Membrane - Rotary

Linearity
±3%

Sensing Method
Resistive

Resistance Tolerance
±20%

For Measuring
Rotary Position

Rotation Angle - Electrical, Mechanical
0° ~ 353°

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Spectra Symbol SP-R-0046-353-103-3%-RH.

Datasheets:

spectrasymbol-spl01001033rh-datasheets-1655.pdf

SP-R-0046-353-103-3%-RH Overview

A Circle Sensor Strip package contains the linear position measuring sensors in order to protect them from damage. Packaged in Bulk is this electronic component. During normal operation, the angle position measuring sensors should be operated at -40°C. Temperatures above 50°C are not allowed to operate angle position sensors. Linear position measuring sensors oppose the flow of current at 10kOhms.

SP-R-0046-353-103-3%-RH Features

Operating Temperature: -40°C~50°C
SoftPot Series
Package / Case: Circle Sensor Strip
Mounting Type: Custom
Resistance Tolerance: ±20%

SP-R-0046-353-103-3%-RH Applications

There are a lot of Spectra Symbol
SP-R-0046-353-103-3%-RH Angle & Linear Position Measuring Sensors applications.

Industrial motor position control
Medical robots and fitness equipment
Absolute Rotary Position Sensor
Steering Wheel Position Sensor
Pedal Position Sensor
Motor-shaft Position Sensor
Throttle Position Sensor
Float-Level Sensor
Ride Height Position Sensor
Non-Contacting Potentiometer
