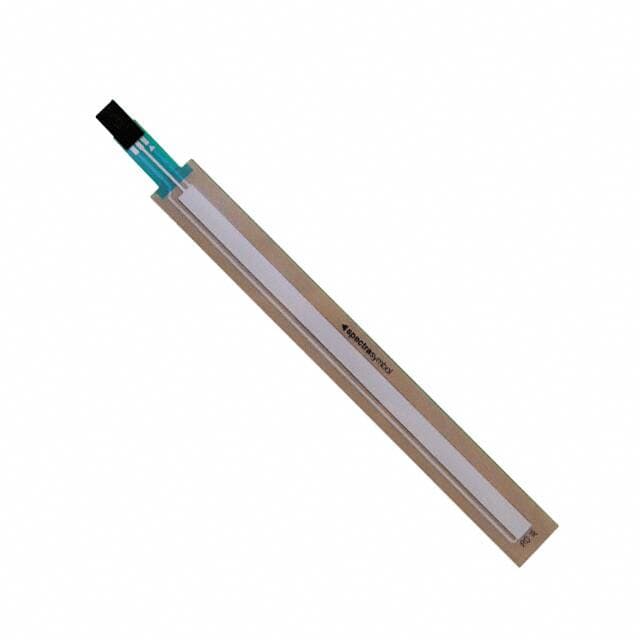

Spectra Symbol SP-L-0050-103-1%-RH

Manufacturer No:

SP-L-0050-103-1%-RH

Manufacturer:

Spectra Symbol

Package:

Sensor Strip

Description:

SoftPot Series For Measuring Linear Position Connector Flexible Membrane - Linear -40°C~50°C Resistive ±1% Resistive Sensor Strip

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SP-L-0050-103-1%-RH information

Spectra Symbol SP-L-0050-103-1%-RH technical specifications, attributes, parameters and parts with similar specifications to Spectra Symbol SP-L-0050-103-1%-RH.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Custom

Package / Case
Sensor Strip

Operating Temperature
-40°C~50°C

Packaging
Bulk

Series
SoftPot

Published
2009

Tolerance
20%

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Connector

Resistance
10kOhms

Max Operating Temperature
50°C

Min Operating Temperature
-40°C

Technology
Resistive

Output
Resistive

Termination Style
Connector

Actuator Type
Flexible Membrane - Linear

Linearity
±1%

Sensing Method
Resistive

Resistance Tolerance
±20%

For Measuring
Linear Position

Linear Range
0 ~ 50.00mm (0 ~ 1.97)

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Spectra Symbol SP-L-0050-103-1%-RH.

Datasheets:

spectrasymbol-spl01001033rh-datasheets-1655.pdf

SP-L-0050-103-1%-RH Overview

Sensor Strip packages are used to protect linear position measuring sensors. Bulk is the package for this electronic component. Angle position measuring sensors can be kept at -40°C by setting the minimum operating temperature. Angle position sensors cannot operate at temperatures higher than 50°C. In linear position measuring sensors, current 10kOhms can't pass through.

SP-L-0050-103-1%-RH Features

Operating Temperature: -40°C~50°C
SoftPot Series
Package / Case: Sensor Strip
Mounting Type: Custom
Linear Range: 0 ~ 50.00mm (0 ~ 1.97)
Resistance Tolerance: ±20%

SP-L-0050-103-1%-RH Applications

There are a lot of Spectra Symbol
SP-L-0050-103-1%-RH Angle & Linear Position Measuring Sensors applications.

Volume control on audio equipment
Motion controllers
Dishwasher control systems
Automotive temperature range
Robotic joint position detection
Industrial motor position control
Medical robots and fitness equipment
Absolute Rotary Position Sensor
Steering Wheel Position Sensor
Pedal Position Sensor
