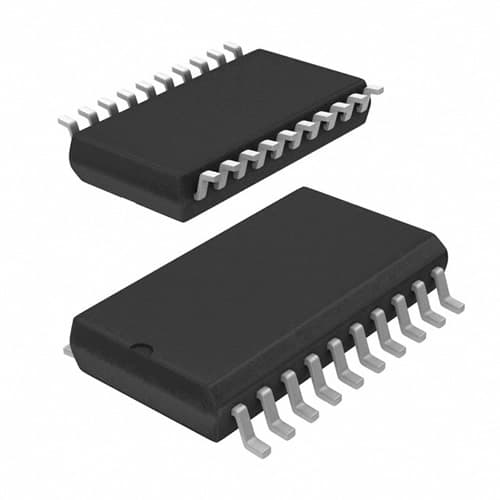

TI SN74LVTH244ANSRG4

Manufacturer No:

SN74LVTH244ANSRG4

Manufacturer:

Package:

SOP

Description:

DUAL Buffers 20 Pins 4 Bit per Element SOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SN74LVTH244ANSRG4 information

TI SN74LVTH244ANSRG4 technical specifications, attributes, parameters and parts with similar specifications to TI SN74LVTH244ANSRG4.

Type
Parameter

Mount
Surface Mount

Package / Case
SOP

Number of Pins
20

Packaging
Tape and Reel

JESD-609 Code
e4

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Bus Driver/Transceivers

Technology
BICMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Supply Voltage
3.3V

Pin Count
20

Operating Supply Voltage
3.3V

Number of Elements
2

Polarity
Non-Inverting

Temperature Grade
INDUSTRIAL

Max Supply Voltage
3.6V

Number of Ports
2

Propagation Delay
2.3 ns

Quiescent Current
5mA

Turn On Delay Time
5.3 ns

Family
LVT

Logic Function
AND, Buffer, Inverting

Number of Inputs
8

Logic IC Type
BUS DRIVER

Number of Bits per Element
4

High Level Output Current
-32mA

Low Level Output Current
64mA

Control Type
ENABLE LOW

Number of Output Lines
3

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI SN74LVTH244ANSRG4.

SN74LVTH244ANSRG4 Overview

There is a neat SOP package used in buffer. A Tape and Reel external packaging is used for this buffer. A total of 2 elements are used. 20 terminations with different functions are available on this transceiver. An input voltage of 3.3V is required. LVT family part. With the electrical part, 20 pins are set. Surface Mount applications are suitable for it. There are 20 pins on digital buffer. The bus transceiver has 2 ports. For each element, there are 4 bits. In particular, automotive buffer is a type of Bus Driver/Transceivers. When the electronic component is quiescent, it uses 5mA. Users should apply 3.3V supply voltage to the lectronic component to run it safely and stably. As low as -40°C can be tolerated by it. You shouldn't let the amibient temperature get higher than 85°C when using this buffer. It outputs 64mA when it is in low-level mode, which is the default. There is a possibility of the electronic component conducting -32mA of current when it is in high-level output mode. It is recommended that the voltage used to run this electrical component is at least 2.7V. It is rated for a maximum supply voltage of 3.6V. The logical driver has the ability to output 3 signal lines at the same time. ICs that use BUS DRIVER logic are known as BUS DRIVER logic transceivers. There are 8 inputs to this system. ENABLE LOW control technology allows the logical driver to start up.
