TI SN74LVC2G32YEAR

Manufacturer No:

SN74LVC2G32YEAR

Manufacturer:

Package:

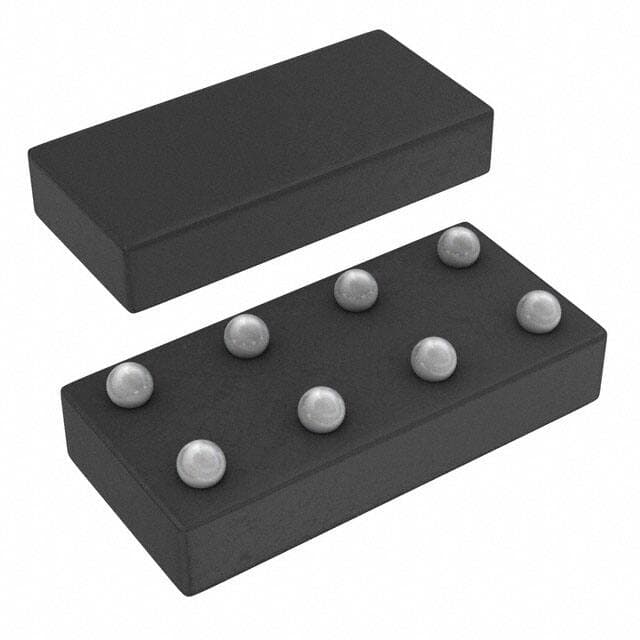

8-XFBGA, DSBGA

Description:

3.3V V 3.2 ns ns 1.9mm mm Gates & Inverters Surface Mount Surface Mount 1.65V~5.5V V 10?A ?A

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SN74LVC2G32YEAR information

TI SN74LVC2G32YEAR technical specifications, attributes, parameters and parts with similar specifications to TI SN74LVC2G32YEAR.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
8-XFBGA, DSBGA

Operating Temperature
-40°C~85°C

Packaging
Cut Tape (CT)

Series
74LVC

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

Subcategory
Gates

Packing Method
TAPE AND REEL

Technology
CMOS

Voltage - Supply
1.65V~5.5V

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
2

Supply Voltage
1.8V

Terminal Pitch
0.5mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
74LVC2G32

Pin Count
8

JESD-30 Code
R-XBGA-B8

Supply Voltage-Max (Vsup)
5.5V

Power Supplies
3.3V

Supply Voltage-Min (Vsup)
1.65V

Number of Circuits
2

Load Capacitance
50pF

Propagation Delay
3.2 ns

Quiescent Current
10?A

Family
LVC/LCX/Z

Logic Function
OR

Number of Inputs
2

Current - Output High, Low
32mA 32mA

Logic Type
OR Gate

Max Propagation Delay @ V, Max CL
3.2ns @ 5V, 50pF

Prop. Delay@Nom-Sup
3.8 ns

Schmitt Trigger
NO

Logic Level - Low
0.7V ~ 0.8V

Logic Level - High
1.7V ~ 2V

Length
1.9mm

Height Seated (Max)
0.5mm

Width
0.9mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI SN74LVC2G32YEAR.

SN74LVC2G32YEAR Overview

The part can be shipped overseas conveniently because it is packaged in 8-XFBGA, DSBGA. In order to provide high reliability, an advanced packaging method Cut Tape (CT) is used. As a result, it works on the principle of OR Gate. The part must have a voltage of 1.65V~5.5V in order to function properly. Operating temperature around -40°C~85°C extended. Surface Mount is the mounting position of the part. In the low and high states of output current, the current is 32mA 32mA. This is part of the 74LVC series. In total, there are 8 terminations. 2 functions in the part enhance the user experience significantly. The chip is part of the LVC/LCX/Z family. Use 74LVC2G32 to search for device variants. There are 8 pins injected into the part body. Many applications use this logic device with Surface Mount mounting. There are 2 inputs on this part. When the part is quiescent, 10?A current flows through it. There is a standard Gates logic device here. A total of 2 circuits make up this device. It has a load capacitance of 50pF. Devices require a minimum voltage of 1.65V. As soon as Vsup reaches 5.5V, the maximal supply voltage (Vsup) is reached. There is an industry TAPE AND REEL method included. The datasheet specifies that the part requires 3.3V volts of power.
