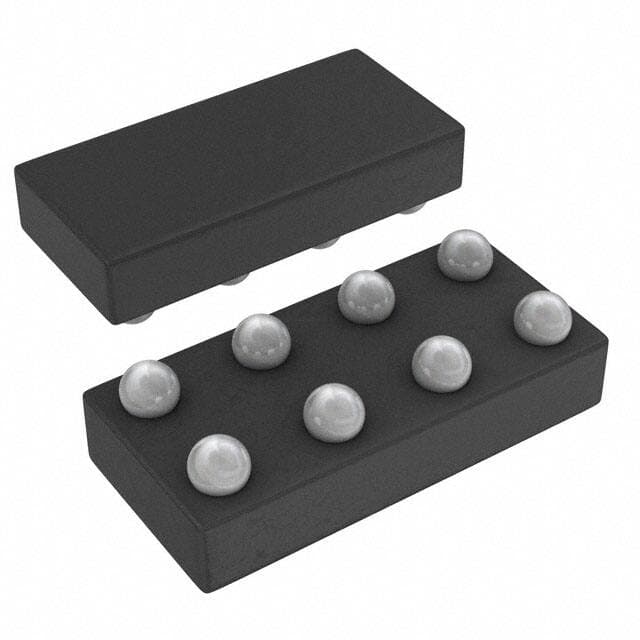

TI SN74LVC2G08YEPR

Manufacturer No:

SN74LVC2G08YEPR

Manufacturer:

Package:

8-XFBGA, DSBGA

Description:

3.3V V 3.8 ns ns 1.9mm mm Gates & Inverters Surface Mount Surface Mount 1.65V~5.5V V 10μA μA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SN74LVC2G08YEPR information

TI SN74LVC2G08YEPR technical specifications, attributes, parameters and parts with similar specifications to TI SN74LVC2G08YEPR.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
8-XFBGA, DSBGA

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Series
74LVC

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

Subcategory
Gates

Technology
CMOS

Voltage - Supply
1.65V~5.5V

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
2

Supply Voltage
1.8V

Terminal Pitch
0.5mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
74LVC2G08

Pin Count
8

JESD-30 Code
R-PBGA-B8

Qualification Status
Not Qualified

Power Supplies
3.3V

Supply Voltage-Min (Vsup)
1.65V

Number of Circuits
2

Load Capacitance
50pF

Propagation Delay
3.8 ns

Quiescent Current
10μA

Family
LVC/LCX/Z

Logic Function
AND

Number of Inputs
2

Current - Output High, Low
32mA 32mA

Logic Type
AND Gate

Max Propagation Delay @ V, Max CL
3.8ns @ 5V, 50pF

Prop. Delay@Nom-Sup
4.7 ns

Schmitt Trigger
NO

Logic Level - Low
0.7V ~ 0.8V

Logic Level - High
1.7V ~ 2V

Length
1.9mm

Height Seated (Max)
0.5mm

Width
0.9mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI SN74LVC2G08YEPR.

SN74LVC2G08YEPR Overview

The part is convenient to ship overseas because it is packed in a 8-XFBGA, DSBGA. The advanced packaging method Tape & Reel (TR) provides high reliability. A AND Gate logic principle governs its operation. Voltage 1.65V~5.5V is needed to ensure the part's full functionality. Operational temperature extended around -40°C~85°C. Mounted in Surface Mount. Output current is 32mA 32mA in the high and low states. 74LVC is the series it belongs to. The total number of terminations is 8. There are 2 functions that significantly improve the user experience. As part of LVC/LCX/Z, this chip is used. Try searching with 74LVC2G08 to find device variants. A total of 8 pins are injected into the body of the part. Logic devices with Surface Mount mounting are widely used in many applications. Inputs are limited to 2. Quiescent parts have 10μA current flowing through them. Gates is a typical logic device. The device consists of 2 circuits. There is 50pF load capacitance on the part. To supply the device, it requires a voltage of 1.65V. Vsup reaches its maximum value at 5.5V. This part requires 3.3V power supplies, according to its datasheet.

SN74LVC2G08YEPR Features

AND Gate Logic Type
Operating Temperature: -40°C~85°C
LVC/LCX/Z Family
Quiescent Current: 10μA

SN74LVC2G08YEPR Applications

There are a lot of Texas Instruments
SN74LVC2G08YEPR Gates and Inverters applications.

Electric grinding wheel
Electrical tools
Sewing machine
DVD
VCD
Computer
Television
Washing machine
Range hood
Refrigerator
