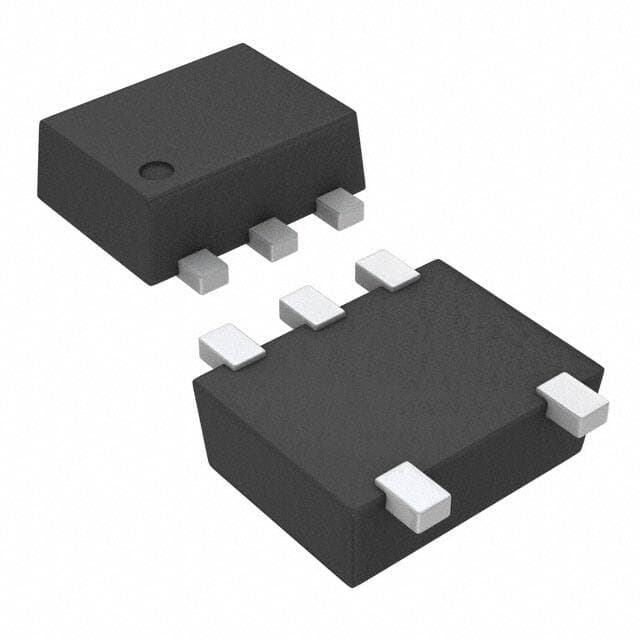

TI SN74LVC1G86DRLRG4

Manufacturer No:

SN74LVC1G86DRLRG4

Manufacturer:

Package:

SOT-553

Description:

3.3V V 4 ns ns 5 ns ns 1.6mm mm Gates & Inverters 600?m mm 2.806603mg mg Surface Mount Surface Mount 1.65V~5.5V V 10?A ?A

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SN74LVC1G86DRLRG4 information

TI SN74LVC1G86DRLRG4 technical specifications, attributes, parameters and parts with similar specifications to TI SN74LVC1G86DRLRG4.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 1 week ago)

Factory Lead Time
6 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
SOT-553

Number of Pins
5

Weight
2.806603mg

Operating Temperature
-40°C~125°C

Packaging
Tape & Reel (TR)

Series
74LVC

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Subcategory
Gates

Packing Method
TR

Technology
CMOS

Voltage - Supply
1.65V~5.5V

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
1.8V

Pin Count
5

Power Supplies
3.3V

Propagation Delay
4 ns

Quiescent Current
10?A

Turn On Delay Time
5 ns

Family
LVC/LCX/Z

Logic Function
OR, XOR

Number of Inputs
2

Current - Output High, Low
32mA 32mA

Logic Type
XOR (Exclusive OR)

Number of Gates
1

Max Propagation Delay @ V, Max CL
4ns @ 5V, 50pF

Schmitt Trigger
NO

Logic Level - Low
0.7V ~ 0.8V

Logic Level - High
1.7V ~ 2V

Height
600?m

Length
1.6mm

Width
1.2mm

Thickness
550?m

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI SN74LVC1G86DRLRG4.

SN74LVC1G86DRLRG4 Overview

Due to its SOT-553 packaging, the part is convenient for international shipping. High reliability is achieved by using advanced packaging method Tape & Reel (TR). XOR (Exclusive OR) logic is the basis of its operation. This part needs a voltage of 1.65V~5.5V to function properly. An extended operating temperature of -40°C~125°C degrees Celsius. Part Surface Mount is mounted. High and low output current states are both 32mA 32mA. The series 74LVC contains it. A total of 5 terminations have been recorded. It has 1 functions that enhance user experience significantly. In LVC/LCX/Z, this chip plays an important role. Use 74LVC1G86 when searching for device variants. Part bodies are injected with 5 pins. There are many applications for this logic device, mounted at Surface Mount. You can find the functions of the 5 pins in the datasheets. It supports inputs of 2. As the part is in a quiescent state, it has 10?A current flowing through it. A logic device of this type is a Gates. A method of industry TR is included in the package. According to the datasheets, the part requires 3.3V power supplies. The operation of 1 gates is logical.

SN74LVC1G86DRLRG4 Features

XOR (Exclusive OR) Logic Type
Operating Temperature: -40°C~125°C
LVC/LCX/Z Family
Quiescent Current: 10?A
1 Gates

SN74LVC1G86DRLRG4 Applications

There are a lot of Texas Instruments
SN74LVC1G86DRLRG4 Gates and Inverters applications.
