TI SN74LVC1G3157YEPR

Manufacturer No:

SN74LVC1G3157YEPR

Manufacturer:

Package:

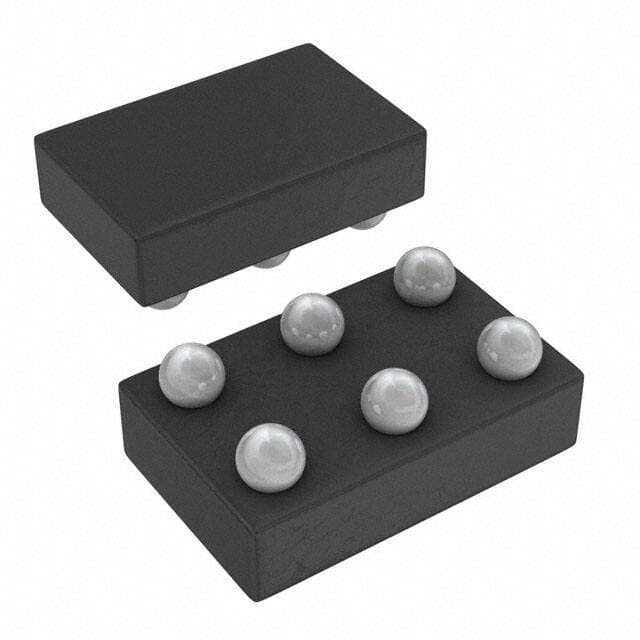

6-XFBGA, DSBGA

Description:

5.7ns, 3.8ns SPDT 15Ohm BOTTOM Analog Switches BREAK-BEFORE-MAKE 74LVC1G3157 6 Pins 2.3V 6-XFBGA, DSBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SN74LVC1G3157YEPR information

TI SN74LVC1G3157YEPR technical specifications, attributes, parameters and parts with similar specifications to TI SN74LVC1G3157YEPR.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
6-XFBGA, DSBGA

Number of Pins
6

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

Resistance
15Ohm

Subcategory
Multiplexer or Switches

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Number of Functions
1

Supply Voltage
2.3V

Terminal Pitch
0.5mm

Reach Compliance Code
not_compliant

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
74LVC1G3157

Output
COMMON OUTPUT

Pin Count
6

Qualification Status
Not Qualified

Number of Circuits
1

Max Supply Voltage
5.5V

Min Supply Voltage
1.65V

Operating Supply Current
1?A

Nominal Supply Current
1?A

Max Supply Current
10?A

Turn On Delay Time
24 ns

Supply Type
Single

Turn-Off Delay Time
13 ns

-3db Bandwidth
340MHz

On-State Resistance (Max)
15Ohm

Multiplexer/Demultiplexer Circuit
2:1

Off-state Isolation-Nom
57 dB

Channel Capacitance (CS(off), CD(off))
5.2pF

On-state Resistance Match-Nom
0.1Ohm

Switch Circuit
SPDT

Switch Time (Ton, Toff) (Max)
5.7ns, 3.8ns

Charge Injection
7pC

Channel-to-Channel Matching (?Ron)
100m ?

Crosstalk
-54dB @ 10MHz

Switching
BREAK-BEFORE-MAKE

Switch-off Time-Max
7.5ns

Voltage - Supply, Single (V+)
1.65V~5.5V

Download datasheets and manufacturer documentation for TI SN74LVC1G3157YEPR.

SN74LVC1G3157YEPR Overview

Shipping overseas is convenient due to the electrical component's packing in 6-XFBGA, DSBGA. This packaging method provides high reliability because it uses advanced packaging techniques. Multiplexers like this are mounted in the Surface Mount position. Multiplexers and demultiplexers have a number of circuits 2:1. Operational temperature extended around -40°C~85°C TA. 6 terminations have been made so far. Due to its 1 channels, the electrical component produces high-quality output. When a voltage supply of 2.3V is used, the electronic component should be turned on and run. It is injected into the electrical part body with 6 pins. Multiplexers built on a SPDT switching circuit are built. It consists of 1 circuits. Try searching for the analog switch ic with 74LVC1G3157 if you are looking for variants. As far as internal resistance is concerned, it has 15Ohm. To find out what the functions of 6 pins are, please refer to their datasheets. In this analog multiplexer, the value is Multiplexer or Switches. Users shouldn't supply more than 5.5V voltage to the switch device. An effective Single supply digital multiplexer. It is recommended that the electrical component receives a voltage of 1.65V. This digital switch can be operated with a current of 1?A. This analogue multiplexer requires a voltage of 1.65V~5.5V when it drains from a single voltage supply. Put voltage above 10?A on the multiplexer to cause damage. In this switch multiplexer, there are COMMON OUTPUT outputs available.

SN74LVC1G3157YEPR Features

1 Channels
Switch Circuit: SPDT
1?A Supply Current
-3db Bandwidth: 340MHz

SN74LVC1G3157YEPR Applications

There are a lot of Texas Instruments
SN74LVC1G3157YEPR Analog Switches & Multiplexers ICs applications.

Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
Relay Replacement
Battery Powered Systems
Existing multiplexer applications (both fault-protected and nonfault-protected)
New designs requiring multiplexer functions
