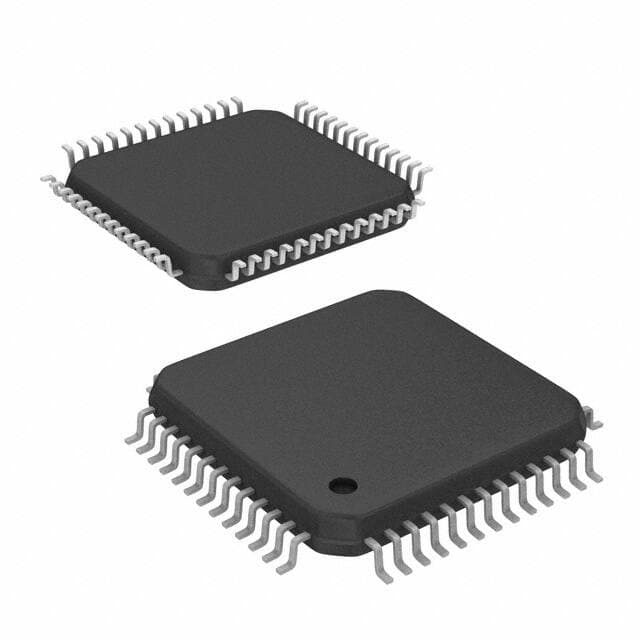

TI SN74FB2031RC

Manufacturer No:

SN74FB2031RC

Manufacturer:

Package:

52-QFP

Description:

9 Bit TTL/BTL Transceiver/Translator 5V 0°C~70°C Specialty Logic IC 74FB Series 74FB2031 52 Pin 0.65mm 4.5V~5.5V 52-QFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SN74FB2031RC information

TI SN74FB2031RC technical specifications, attributes, parameters and parts with similar specifications to TI SN74FB2031RC.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
52-QFP

Number of Pins
52

Operating Temperature
0°C~70°C

Packaging
Tray

Series
74FB

JESD-609 Code
e0

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
52

Terminal Finish
Tin/Lead (Sn/Pb)

Subcategory
Bus Driver/Transceivers

Technology
TTL

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
240

Number of Functions
1

Supply Voltage
4.5V~5.5V

Terminal Pitch
0.65mm

Base Part Number
74FB2031

Pin Count
52

Operating Supply Voltage
5V

Power Supplies
5V

Number of Circuits
1

Max Supply Voltage
5.5V

Min Supply Voltage
4.5V

Load Capacitance
30pF

Number of Ports
2

Output Current
100mA

Number of Bits
9

Propagation Delay
7.8 ns

Turn On Delay Time
7.8 ns

Family
FB

Logic Function
Buffer, Transceiver, Translator

Direction
Bidirectional

Output Characteristics
OPEN-COLLECTOR/3-STATE

Logic Type
TTL/BTL Transceiver/Translator

Prop. Delay@Nom-Sup
7.6 ns

Trigger Type
POSITIVE EDGE

High Level Output Current
-3mA

Low Level Output Current
100mA

Control Type
INDEPENDENT CONTROL

Power Supply Current-Max (ICC)
78mA

Translation
BTL & TTL

Height Seated (Max)
2.45mm

Download datasheets and manufacturer documentation for TI SN74FB2031RC.

Datasheets:

texasinstruments-sn74fb2031rc-datasheets-4035.pdf

SN74FB2031RC Overview

It is used to package items using Tray.A package called 52-QFP contains it.It is necessary to supply voltage 4.5V~5.5V to ensure that the device is capable of operating normally.As a type of electronic component, it uses the Surface Mount mounting method.It is set to operate at a temperature of 0°C~70°C.Information can be stored in the memory at the rate of 9 bits.Several similarities exist among electronic parts of the 74FB series.Using the base part number 74FB2031, it is possible to locate a number of related parts.The total number of component pins equals 52.Using 52 terminations, signals are prevented from reverberating off the end of the transmission line.A Surface Mount mounting method is used.It is constructed using 52 pins.In normal conditions, the minimum voltage supply can be set to 4.5V.Keeping the maximum supply voltage at 5.5V will maintain normal operation.It can be categorized under Bus Driver/Transceivers.This device depends on the voltage of 5V supplied to it for operation.In order to ensure convenient operation, the power supplies of 5V should be maintained.In addition to being optimized for high quality and reliability, the electronic part belongs to the family of FB.In total, it contains 2 ports.It is possible to use INDEPENDENT CONTROL as its control type.A maximum power supply current of 78mA is maintained.It is configured with a total of 1 circuits.Operating the device results in an output current of 100mA.
