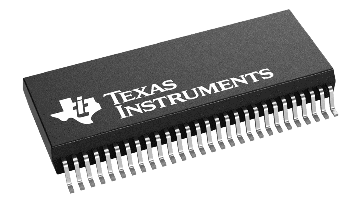

Texas Instruments SN74CB3Q16211DLG4

Manufacturer No:

SN74CB3Q16211DLG4

Manufacturer:

Texas Instruments

Package:

Description:

3.3-V, 1:1 (SPST), 24-channel general-purpose FET bus switch

Quantity:

In Stock :2907

Looking for price or availability? Send us an RFQ and our sales team will respond quickly.

Shipping & Availability

Fast worldwide shipping via DHL, FedEx, UPS, and EMS.

Shipped from：HK Warehouse

Expected Shipping：Fri, May 15 - Sat, May 16, 2026

Lead Time：Inquire about availability

Date Code：Within 2 Years

Payment

We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.

Authenticity Guarantee

All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.

Quality Assurance

Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step4：Individual Package

Step5：Anti-collision Filling

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

SN74CB3Q16211DLG4 Information

Texas Instruments SN74CB3Q16211DLG4 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments SN74CB3Q16211DLG4.

Type
Parameter

Configuration
1:1 SPST

Number of channels
24

Power supply voltage - single (V)
2.5, 3.3

Protocols
Analog

Ron (typ) (Ω)
5

CON (typ) (pF)
10

Supply current (typ) (µA)
1000

Bandwidth (MHz)
500

Operating temperature range (°C)
-40 to 85

Features
Powered-off protection, Supports input voltage beyond supply

Type
Parameter

Input/output continuous current (max) (mA)
64

Rating
Catalog

Drain supply voltage (max) (V)
3.6

Supply voltage (max) (V)
3.6

Package
SSOP (DL)

Pins
56

Size
190.647 mm² 18.42 x 10.35

Package
TSSOP (DGG)

Pins
56

Size
113.4 mm² 14 x 8.1

Download datasheets and manufacturer documentation for Texas Instruments SN74CB3Q16211DLG4.

The SN74CB3Q16211 device is a high-bandwidth FET bus switch utilizing a charge pump to elevate the gate voltage of the pass transistor, providing a low and flat ON-state resistance (r_on). The low and flat ON-state resistance allows for minimal propagation delay and supports rail-to-rail switching on the data input/output (I/O) ports. The device also features low data I/O capacitance to minimize capacitive loading and signal distortion on the data bus. Specifically designed to support high-bandwidth applications, the SN74CB3Q16211 device provides an optimized interface solution ideally suited for broadband communications, networking, and data-intensive computing systems.

The SN74CB3Q16211 device is organized as two 12-bit bus switches with separate output-enable (1 OE, 2 OE) inputs. It can be used as two 12-bit bus switches or as one 24-bit bus switch. When OE is low, the associated 12-bit bus switch is ON and the A port is connected to the B port, allowing bidirectional data flow between ports. When OE is high, the associated 12-bit bus switch is OFF, and a high-impedance state exists between the A and B ports.

This device is fully specified for partial-power-down applications using I_off. The I_off circuitry prevents damaging current backflow through the device when it is powered down.

To ensure the high-impedance state during power up or power down, OE should be tied to V_CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

Member of the Texas Instruments Widebus family
High-bandwidth data path (up to 500 MHz⁽¹⁾)
5-V tolerant I/Os with device powered up or powered down
Low and flat ON-state resistance (r_on) characteristics over operating range (r_on = 5 Ω typical)
Rail-to-rail switching on data I/O ports
- 0-V to 5-V switching with 3.3-V V_CC
- 0-V to 3.3-V switching with 2.5-V V_CC
Bidirectional data flow, with near-zero propagation delay
Low input or output capacitance minimizes loading and signal distortion (C_io(OFF) = 4 pF typical)
Fast switching frequency (f_OE = 20 MHz maximum)
Data and control inputs provide undershoot clamp diodes
Low power consumption (I_CC = 1 mA typical)
V_CC operating range from 2.3 V to 3.6 V
Data I/Os support 0-V to 5-V signaling levels (0.8 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V, and 5 V)
Control inputs can be driven by TTL or 5-V/3.3-V CMOS outputs
I_off supports partial-power-down mode operation
Latch-up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested Per JESD 22
- 2000-V Human-Body Model (A114-B, Class II)
- 1000-V Charged-Device Model (C101)
Supports both digital and analog applications: PCI interface, differential signal interface, memory interleaving, bus isolation, low-distortion signal gating ⁽¹⁾

⁽¹⁾For additional information regarding the performance characteristics of the CB3Q family, refer to the TI application report, CBT-C, CB3T, and CB3Q Signal-Switch Families .
