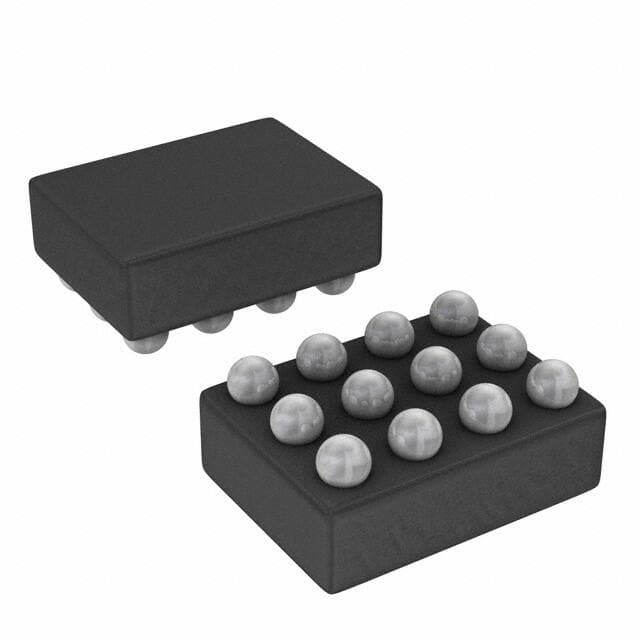

TI SN74AVC2T872YFPR

Manufacturer No:

SN74AVC2T872YFPR

Manufacturer:

Package:

12-XFBGA, DSBGA

Description:

Surface Mount Tape & Reel (TR) Voltage Translators & Level Shifters 1 Voltage Level 12-XFBGA, DSBGA Active 6 Weeks Weeks 1 (Unlimited)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SN74AVC2T872YFPR information

TI SN74AVC2T872YFPR technical specifications, attributes, parameters and parts with similar specifications to TI SN74AVC2T872YFPR.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Surface Mount

Package / Case
12-XFBGA, DSBGA

Surface Mount
YES

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Series
74AVC

JESD-609 Code
e1

Feature
Power-Off Protection

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
12

ECCN Code
EAR99

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Subcategory
Other Interface ICs

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
1.2V

Terminal Pitch
0.4mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Pin Count
12

Qualification Status
Not Qualified

Output Type
Non-Inverted

Supply Voltage-Max (Vsup)
3.6V

Number of Circuits
1

Number of Bits
2

Supply Current-Max
0.04mA

Output Characteristics
PUSH-PULL

Interface IC Type
INTERFACE CIRCUIT

Channel Type
Bidirectional

Supply Voltage1-Nom
1.2V

Translator Type
Voltage Level

Voltage - VCCA
1.1V~3.6V

Voltage - VCCB
1.1V~3.6V

Channels per Circuit
2

Supply Voltage1-Max
3.6V

Height Seated (Max)
0.5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for TI SN74AVC2T872YFPR.

SN74AVC2T872YFPR Overview

Embedded in the 12-XFBGA, DSBGA package, it is available for you to use.Tape & Reel (TR) is the way in which it is packaged.Non-Inverted is used for the output it is configured with.There is a translator type of Voltage Level for this electrical device.Surface Mount is the method used for mounting this electronic part.Level translators has the Channel type Bidirectional.The temperature used for operation is -40°C~85°C TA.Flexible 1 circuits enable it to achieve high performance.When it comes to terminating a transmission line, there are 12 terminations.Parts related to a base part number 74AVC2T872 are designated by the same number.This device is powered by a supply voltage of 1.2V which is applied to it.12 pins are present on this board.There are a number of devices in the series 74AVC that belong to it.There are 2 bits in this electronic part, which means it is designed in such a way.VCCA is configured with a supply rail that starts at 1.1V~3.6V.VCCB is configured with a supply rail that starts at 1.1V~3.6V.This object belongs to the category of Other Interface ICs.Whenever the operation is performed, Power-Off Protection will be guaranteed.

SN74AVC2T872YFPR Features

12-XFBGA, DSBGA package
1 circuits
12 pin count
74AVC series

SN74AVC2T872YFPR Applications

There are a lot of Texas Instruments
SN74AVC2T872YFPR voltage translators & level shifters applications.

SMBus
SDIO
UART
I2C
Automotive
Personal computing
Automotive infotainment
Advanced Driver Assistance System (ADAS)
Telematics
Handset
