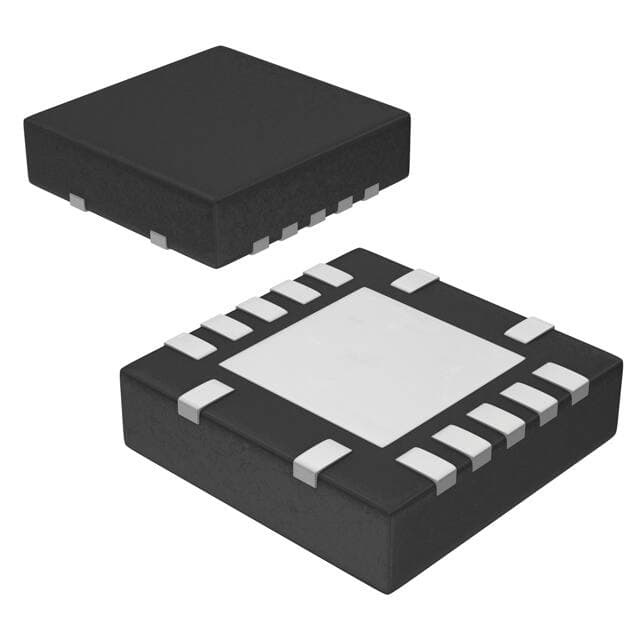

TI SN74AUC07RGYRG4

Manufacturer No:

SN74AUC07RGYRG4

Manufacturer:

Package:

14-VFQFN Exposed Pad

Description:

QUAD Buffer, Non-Inverting 0.8V~2.7V Open Drain Buffers 74AUC Series 74AUC07 14 Pins 1 Bit per Element - 9mA 14-VFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SN74AUC07RGYRG4 information

TI SN74AUC07RGYRG4 technical specifications, attributes, parameters and parts with similar specifications to TI SN74AUC07RGYRG4.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
14-VFQFN Exposed Pad

Number of Pins
14

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Series
74AUC

JESD-609 Code
e4

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
14

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Subcategory
Gates

Packing Method
TAPE AND REEL

Technology
CMOS

Voltage - Supply
0.8V~2.7V

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Number of Functions
6

Supply Voltage
1.2V

Terminal Pitch
0.5mm

Base Part Number
74AUC07

Pin Count
14

Polarity
Non-Inverting

Supply Voltage-Max (Vsup)
2.7V

Supply Voltage-Min (Vsup)
0.8V

Number of Channels
6

Propagation Delay
1.3 ns

Quiescent Current
10?A

Turn On Delay Time
3.5 ns

Family
AUC

Logic Function
Buffer, Inverting

Current - Output High, Low
- 9mA

Logic Type
Buffer, Non-Inverting

Max I(ol)
0.005 A

Number of Bits per Element
1

Schmitt Trigger
NO

Number of Output Lines
6

Length
3.5mm

Width
3.5mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI SN74AUC07RGYRG4.

SN74AUC07RGYRG4 Overview

There is a neat 14-VFQFN Exposed Pad package used in buffer. A Tape & Reel (TR) external packaging is used for this buffer. The external packaging used in this logic IC is the Surface Mount external packaging. This is a typical Buffer, Non-Inverting logic integrated circuit with a wide range of applications. There's a 0.8V~2.7V supply voltage for this logic IC. This automotive buffer is capable of working through -40°C~85°C TA. This buffer IC has a - 9mA high and low logic state output current. There are Open Drain outputs that digital buffer can handle. 74AUC series devices are included in this network transceiver. 14 terminations with different functions are available on this transceiver. An input voltage of 1.2V is required. AUC family part. With the electrical part, 14 pins are set. Surface Mount applications are suitable for it. There are 14 pins on digital buffer. For each element, there are 1 bits. For other related electronic components, you can search 74AUC07. In particular, automotive buffer is a type of Gates. When the electronic component is quiescent, it uses 10?A. The package is usually shaped like a TAPE AND REEL. The digital buffer requires a minimum voltage of 0.8V. High-quality communication is provided by 6 channels on thisnetwork transceiver. The logical driver has the ability to output 6 signal lines at the same time.

SN74AUC07RGYRG4 Features

Gates

SN74AUC07RGYRG4 Applications

There are a lot of Texas Instruments
SN74AUC07RGYRG4 Buffers & Transceivers applications.

Wireless modems
Remote controls
Wireless network systems
Satellite communications networks
Ethernet circuitry
Wired telephone
Cordless telephone
Desktop PC
Notebook
Pocket PC
