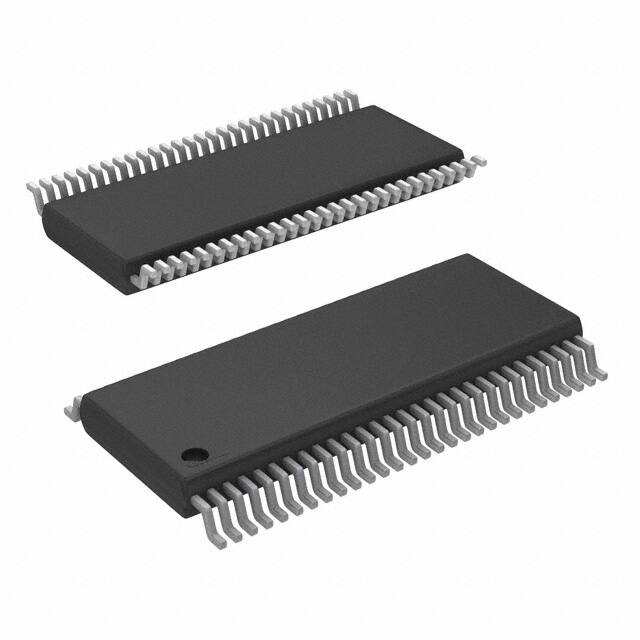

TI SN74ALVTH162827VR

Manufacturer No:

SN74ALVTH162827VR

Manufacturer:

Package:

56-TFSOP (0.173, 4.40mm Width)

Description:

DUAL Buffer, Non-Inverting 2.3V~2.7V 3V~3.6V 3-State Buffers 74ALVTH Series 74ALVTH162827 56 Pins 10 Bit per Element 32mA 64mA 56-TFSOP (0.173, 4.40mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SN74ALVTH162827VR information

TI SN74ALVTH162827VR technical specifications, attributes, parameters and parts with similar specifications to TI SN74ALVTH162827VR.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 4 days ago)

Factory Lead Time
6 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
56-TFSOP (0.173, 4.40mm Width)

Number of Pins
56

Operating Temperature
-40°C~85°C TA

Packaging
Cut Tape (CT)

Series
74ALVTH

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
56

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Subcategory
Bus Driver/Transceivers

Packing Method
TR

Technology
BICMOS

Voltage - Supply
2.3V~2.7V 3V~3.6V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Terminal Pitch
0.4mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
74ALVTH162827

Pin Count
56

Number of Outputs
16

Qualification Status
Not Qualified

Output Type
3-State

Number of Elements
2

Polarity
Non-Inverting

Number of Ports
2

Propagation Delay
3.9 ns

Quiescent Current
3.2mA

Turn On Delay Time
6.3 ns

Logic Function
AND, Buffer, Inverting

Current - Output High, Low
32mA 64mA

Logic Type
Buffer, Non-Inverting

Number of Bits per Element
10

Prop. Delay@Nom-Sup
4.1 ns

Control Type
ENABLE LOW

Power Supply Current-Max (ICC)
5.5mA

Number of Input Lines
20

Number of Output Lines
3

Count Direction
UNIDIRECTIONAL

Download datasheets and manufacturer documentation for TI SN74ALVTH162827VR.

Datasheets:

texasinstruments-sn74alvth162827dl-datasheets-8825.pdf

SN74ALVTH162827VR Overview

An interesting 56-TFSOP (0.173, 4.40mm Width) package is used. As part of the external packaging, this logical driver uses the Cut Tape (CT) form factor. In this bus transceiver, you can choose from a Surface Mount mount or a D mount. There is a wide range of applications for this Buffer, Non-Inverting logic integrated circuit. The supply voltage for this ethernet transceiver is 2.3V~2.7V 3V~3.6V. As long as the ambient temperature does not exceed -40°C~85°C TA, the logical driver can function. In both high and low logic states, it has an output current of 32mA 64mA. With 3-State outputs, bus transceiver can be used. The 2 elements all play a role. A 74ALVTH series network transceiver, it belongs to the line of mobile devices. Logic device with 56 different terminations. There is a requirement for 2.5V of supply voltage. This electric component comes with 56 pins. Surface Mount applications can be used with digital buffer. A 56-pin connector is used. An enhanced bus transceiver with 2 ports is available. Each element employs 10 bits. Search 74ALVTH162827 for other related electrical components. An example of a Bus Driver/Transceivers type is this. It uses 3.2mA when quiescent. There is usually a TR package available. As a result, 3 signal lines are capable of being output through this voltage buffer. As a result of its 20 line level input capability, the buffer IC is more cost-effective for the transmission of signals. The amount of data required to make 16 outputs is sufficient. Voltage buffers using ENABLE LOW control start up automatically.
