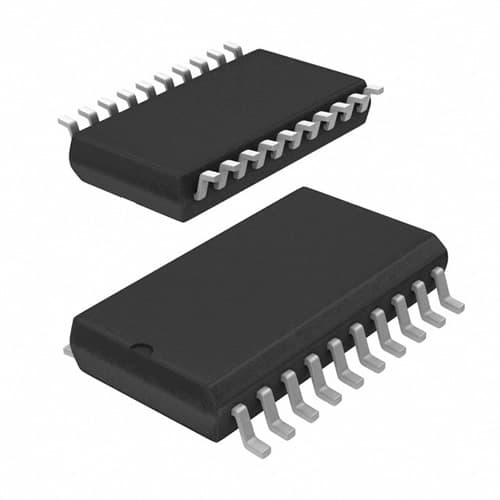

TI SN74ALS244CDWRG4

Manufacturer No:

SN74ALS244CDWRG4

Manufacturer:

Package:

SOIC

Description:

DUAL Buffers 20 Pins 4 Bit per Element SOIC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SN74ALS244CDWRG4 information

TI SN74ALS244CDWRG4 technical specifications, attributes, parameters and parts with similar specifications to TI SN74ALS244CDWRG4.

Type
Parameter

Mount
Surface Mount

Package / Case
SOIC

Number of Pins
20

JESD-609 Code
e4

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
Bus Driver/Transceivers

Packing Method
TAPE AND REEL

Technology
TTL

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Supply Voltage
5V

Pin Count
20

Number of Elements
2

Polarity
Non-Inverting

Power Supplies
5V

Temperature Grade
COMMERCIAL

Max Supply Voltage
5.5V

Load Capacitance
50pF

Number of Ports
2

Propagation Delay
10 ns

Family
ALS

Logic Function
Buffer, Inverting

Output Characteristics
3-STATE

Logic IC Type
BUS DRIVER

Number of Bits per Element
4

High Level Output Current
24mA

Low Level Output Current
15mA

Control Type
ENABLE LOW

Number of Input Lines
8

Width
7.5mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI SN74ALS244CDWRG4.

SN74ALS244CDWRG4 Overview

Logical driver uses a neat SOIC package. All of the 2 elements are put into use. 20 terminations with different functions. Buffer IC reuqires a supply voltage of 5V. Transceiver shares the ALS family's comprehensive benefits and features. 20 pins are set with the electric part. Buffer IC is suitable for Surface Mount applications. Logical driver has 20 pins. Enhanced with 2 ports. The bus transceiver employs 4 bits for each element. Specifically, digital transciever is a kind of Bus Driver/Transceivers. It is recommended to use a 5V power supply. It is generally sold in TAPE AND REEL package. Voltage buffer is capable of operating under temperature as low as 0°C. Digital buffer should operate with ambient temperature no higher than 70°C. Buffer driver outputs 15mA to its low level. In high level output mode, the electronic parts may conduct 24mA of current. Voltage used to run voltage buffer should be 4.5V at least. In regard to the maximum supply voltage, buffer driver is rated 5.5V. Because of its 8 lines level input capability, buffer IC is more cost-effective on transimitting signals. It is known as a BUS DRIVER logic IC. ENABLE LOW control technology is used to start up the automotive buffer.
