TI SN74AHC02RGYRG4

Manufacturer No:

SN74AHC02RGYRG4

Manufacturer:

Package:

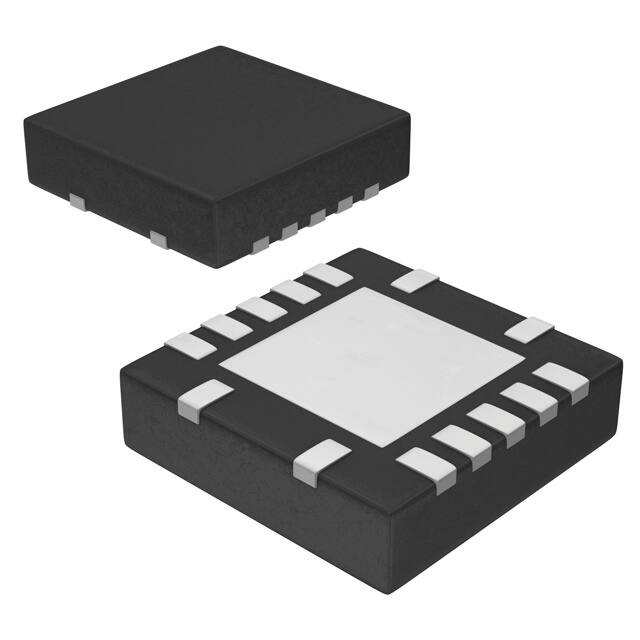

14-VFQFN Exposed Pad

Description:

7.5 ns ns 8.5 ns ns 3.5mm mm Gates & Inverters 8mA mA 1mm mm 32.205058mg mg Surface Mount Surface Mount 2V~5.5V V 2?A ?A

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SN74AHC02RGYRG4 information

TI SN74AHC02RGYRG4 technical specifications, attributes, parameters and parts with similar specifications to TI SN74AHC02RGYRG4.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 5 days ago)

Factory Lead Time
6 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
14-VFQFN Exposed Pad

Number of Pins
14

Weight
32.205058mg

Operating Temperature
-40°C~125°C

Packaging
Tape & Reel (TR)

Series
74AHC

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
14

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Subcategory
Gates

Packing Method
TR

Technology
CMOS

Voltage - Supply
2V~5.5V

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Number of Functions
4

Terminal Pitch
0.5mm

Base Part Number
74AHC02

Pin Count
14

Supply Voltage-Max (Vsup)
5.5V

Supply Voltage-Min (Vsup)
2V

Load Capacitance
50pF

Output Current
8mA

Propagation Delay
7.5 ns

Quiescent Current
2?A

Turn On Delay Time
8.5 ns

Family
AHC/VHC/H/U/V

Logic Function
NOR

Number of Inputs
2

Current - Output High, Low
8mA 8mA

Logic Type
NOR Gate

Max I(ol)
0.008 A

Number of Gates
4

Max Propagation Delay @ V, Max CL
8.5ns @ 5V, 50pF

Schmitt Trigger
NO

Logic Level - Low
0.5V ~ 1.65V

Logic Level - High
1.5V ~ 3.85V

Number of Output Lines
1

Height
1mm

Download datasheets and manufacturer documentation for TI SN74AHC02RGYRG4.

SN74AHC02RGYRG4 Overview

The part is convenient to ship overseas because it is packed in a 14-VFQFN Exposed Pad. The advanced packaging method Tape & Reel (TR) provides high reliability. A NOR Gate logic principle governs its operation. Voltage 2V~5.5V is needed to ensure the part's full functionality. Operational temperature extended around -40°C~125°C. Mounted in Surface Mount. Output current is 8mA 8mA in the high and low states. 74AHC is the series it belongs to. The total number of terminations is 14. There are 4 functions that significantly improve the user experience. As part of AHC/VHC/H/U/V, this chip is used. Try searching with 74AHC02 to find device variants. A total of 14 pins are injected into the body of the part. Logic devices with Surface Mount mounting are widely used in many applications. Datasheets for functions of 14 pins are available. Inputs are limited to 2. Quiescent parts have 2?A current flowing through them. Gates is a typical logic device. There is 50pF load capacitance on the part. To supply the device, it requires a voltage of 2V. Vsup reaches its maximum value at 5.5V. The method TR is packed into it. Its output current is rated at 8mA. 4 gates are used in logical operations.

SN74AHC02RGYRG4 Features

NOR Gate Logic Type
Operating Temperature: -40°C~125°C
AHC/VHC/H/U/V Family
Quiescent Current: 2?A
Output Current: 8mA
4 Gates

SN74AHC02RGYRG4 Applications

There are a lot of Texas Instruments
SN74AHC02RGYRG4 Gates and Inverters applications.

Electric grinding wheel
Electrical tools
Sewing machine
DVD
VCD
Computer
Television
Washing machine
Range hood
Refrigerator
