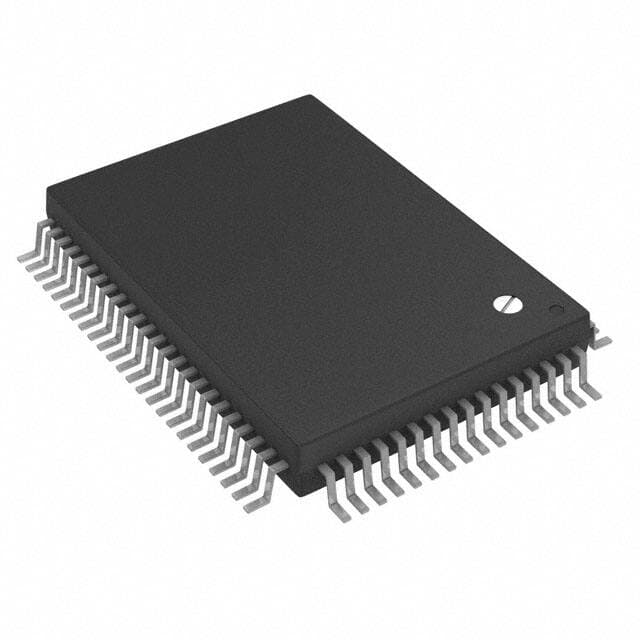

TI SN74ABT7820-30PH
Manufacturer No:
SN74ABT7820-30PH
Manufacturer:
Package:
80-BQFP
Description:
80 Terminations 5V 80 Pin 74ABT7820 FIFO memory IC 74ABT Series 18K 512 x 18 x 2 17ns
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
SN74ABT7820-30PH information
TI SN74ABT7820-30PH technical specifications, attributes, parameters and parts with similar specifications to TI SN74ABT7820-30PH.
- Type
- Parameter
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 80-BQFP
- Number of Pins
- 80
- Operating Temperature
- 0°C~70°C
- Packaging
- Tray
- Series
- 74ABT
- JESD-609 Code
- e4
- Pbfree Code
- no
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 3 (168 Hours)
- Number of Terminations
- 80
- ECCN Code
- EAR99
- Terminal Finish
- Nickel/Palladium/Gold (Ni/Pd/Au)
- Additional Feature
- BYPASS XCVR
- Subcategory
- FIFOs
- Technology
- BICMOS
- Voltage - Supply
- 4.5V~5.5V
- Terminal Position
- QUAD
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 260
- Supply Voltage
- 5V
- Terminal Pitch
- 0.8mm
- Frequency
- 33.4MHz
- Function
- Asynchronous
- Operating Supply Voltage
- 5V
- Power Supplies
- 5V
- Number of Circuits
- 2
- Memory Size
- 18K 512 x 18 x 2
- Element Configuration
- Dual
- Nominal Supply Current
- 95mA
- Max Supply Current
- 95mA
- Access Time
- 17ns
- Data Rate
- 33.3MHz
- Data Bus Width
- 18b
- Direction
- Bidirectional
- Output Characteristics
- 3-STATE
- Memory Width
- 18
- Density
- 18 kb
- Parallel/Serial
- PARALLEL
- Word Size
- 18b
- Bus Directional
- Bi-Directional
- Retransmit Capability
- No
- Programmable Flags Support
- Yes
- Output Enable
- YES
- Cycle Time
- 30 ns
- Length
- 14mm
Download datasheets and manufacturer documentation for TI SN74ABT7820-30PH.
PCN Obsolescence/ EOL:
SN74ABT7820-30PH Overview
You will find FIFO memory chip in the 80-BQFP package.There's a Tray on the package.There is a 18K 512 x 18 x 2 MB memory on the FIFO chips, which can be used to store both applications and data.Reliable operation requires a temperature of 0°C~70°C .Mounting type Surface Mount indicates that the FIFO memory is mounted.A voltage supply of 4.5V~5.5V is needed to operate it.The 74ABT series contains this memory logic.Mounting it in the Surface Mount way is recommended.The 74ABT7820 family contains this item.Supply voltages of 5V are capable of achieving high efficiency.The number of terminations in FIFO means is 80 .There are 80 pins on the operation pins.Its maximum operating current is 95mA .A voltage of 5V should be used for FIFO's maximum efficiency.The gadget is self-contained and can be found in FIFOs .When the frequency is set to 33.4MHz , the system can maintain good accuracy.A component normally has 5V power supplies attached to it.It is also possible to generate BYPASS XCVR by using this FIFO memory.Through the use of 2 circuits, FIFO memory chip is able to achieve enhanced flexibility.
