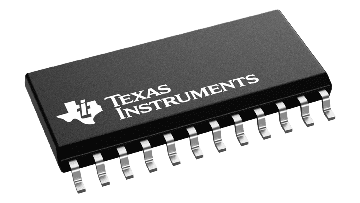

Texas Instruments SN74ABT543ADWRG4

Manufacturer No:

SN74ABT543ADWRG4

Manufacturer:

Texas Instruments

Package:

Description:

Octal Registered Transceivers With 3-State Outputs

Quantity:

In Stock :2698

Looking for price or availability? Send us an RFQ and our sales team will respond quickly.

Shipping & Availability

Fast worldwide shipping via DHL, FedEx, UPS, and EMS.

Shipped from：HK Warehouse

Expected Shipping：Wed, May 13 - Thu, May 14, 2026

Lead Time：Inquire about availability

Date Code：Within 2 Years

Payment

We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.

Authenticity Guarantee

All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.

Quality Assurance

Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step4：Individual Package

Step5：Anti-collision Filling

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

SN74ABT543ADWRG4 Information

Texas Instruments SN74ABT543ADWRG4 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments SN74ABT543ADWRG4.

Type
Parameter

Supply voltage (min) (V)
4.5

Supply voltage (max) (V)
5.5

Number of channels
8

IOL (max) (mA)
64

IOH (max) (mA)
-32

Input type
TTL

Output type
TTL

Features
Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns)

Technology family
ABT

Rating
Catalog

Type
Parameter

Operating temperature range (°C)
-40 to 85

Package
SOIC (DW)

Pins
24

Size
159.65 mm² 15.5 x 10.3

Package
SSOP (DB)

Pins
24

Size
63.96 mm² 8.2 x 7.8

Package
TSSOP (PW)

Pins
24

Size
49.92 mm² 7.8 x 6.4

Download datasheets and manufacturer documentation for Texas Instruments SN74ABT543ADWRG4.

The 'ABT543A octal transceivers contain two sets of D-type latches for temporary storage of data flowing in either direction. Separate latch-enable (LEAB\ or LEBA\) and output-enable (OEAB\ or OEBA\) inputs are provided for each register to permit independent control in either direction of data flow.

The A-to-B enable (CEAB\) input must be low to enter data from A or to output data from B. If CEAB\ is low and LEAB\ is low, the A-to-B latches are transparent; a subsequent low-to-high transition of LEAB\ puts the A latches in the storage mode. With CEAB\ and OEAB\ both low, the 3-state B outputs are active and reflect the data present at the output of the A latches. Data flow from B to A is similar, but requires using the CEBA\, LEBA\, and OEBA\ inputs.

To ensure the high-impedance state during power up or power down, OE\ should be tied to V_CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

The SN54ABT543A is characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ABT543A is characterized for operation from -40°C to 85°C.

State-of-the-Art EPIC-II B^TM BiCMOS Design Significantly Reduces Power Dissipation
ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)
Typical V_OLP (Output Ground Bounce) < 1 V at V_CC = 5 V, T_A = 25°C
High-Drive Outputs (-32-mA I_OH, 64-mA I_OL)
Package Options Include Plastic Small-Outline (DW), Shrink Small-Outline (DB), and Thin Shrink Small-Outline (PW) Packages, Ceramic Chip Carriers (FK), Ceramic Flat (W) Package, and Plastic (NT) and Ceramic (JT) DIPs
