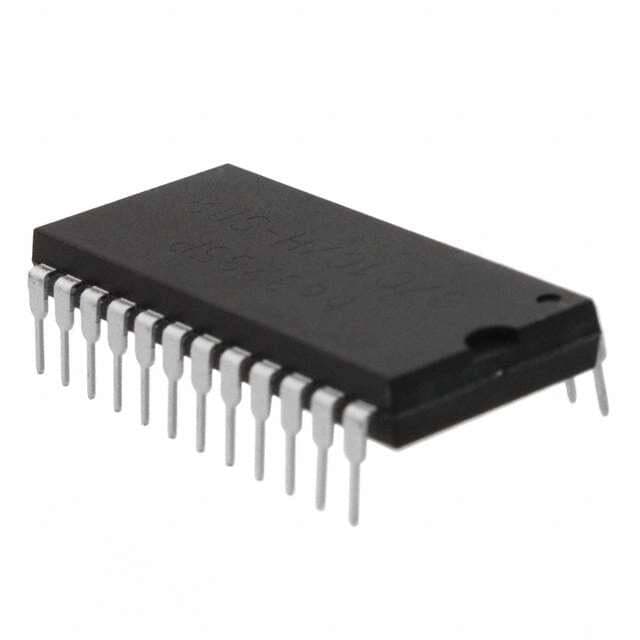

TI SN74159N

Manufacturer No:

SN74159N

Manufacturer:

Package:

24-DIP (0.600, 15.24mm)

Description:

24 Terminations 4.75V~5.25V 24 Pin SN74159 Signal switch 7400 Series 16 Outputs 1 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SN74159N information

TI SN74159N technical specifications, attributes, parameters and parts with similar specifications to TI SN74159N.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
24-DIP (0.600, 15.24mm)

Number of Pins
24

Weight
3.735305g

Operating Temperature
0°C~70°C

Packaging
Tube

Series
7400

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
24

ECCN Code
EAR99

Type
Decoder/Demultiplexer

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Subcategory
Decoder/Drivers

Technology
TTL

Voltage - Supply
4.75V~5.25V

Terminal Position
DUAL

Number of Functions
1

Supply Voltage
5V

Base Part Number
SN74159

Pin Count
24

Operating Supply Voltage
5V

Circuit
1 x 4:16

Polarity
Inverting

Propagation Delay
36 ns

Turn On Delay Time
36 ns

Family
TTL/H/L

Logic Function
Decoder, Demultiplexer, Demux

Output Characteristics
OPEN-COLLECTOR

Supply Type
Single

High Level Output Current
-50?A

Low Level Output Current
16mA

Power Supply Current-Max (ICC)
56mA

Number of Input Lines
4

Voltage Supply Source
Single Supply

Independent Circuits
1

Input Conditioning
STANDARD

Height Seated (Max)
5.08mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI SN74159N.

Datasheets:

texasinstruments-sn74159n-datasheets-6815.pdf

texasinstruments-cd4508beg4-datasheets-1502.pdf

texasinstruments-sn74159n-datasheets-3489.pdf

texasinstruments-sn74159n-datasheets-3490.pdf

texasinstruments-sn74159n-datasheets-3491.pdf

texasinstruments-sn74159n-datasheets-3492.pdf

SN74159N Overview

Due to the lack of space on the board, digital switch is provided in the 24-DIP (0.600, 15.24mm).It is packaged according to the Tube method.The mounting method digital switch ic uses is Through Hole.A digital IC Decoder/Demultiplexer is used as the analog component of the multiplexers.If the operating temperature is maintained at 0°C~70°C, turn signal switch will not be susceptible to external factors.Using a 4.75V~5.25V supply voltage provides digital controlled switch's superior flexibility for designers.Multiplexers in the 7400 series are suitable for a wide range of applications.There are 24 terminations included in its basic configuration.The base part number is SN74159, which is also useful when looking up signal switch's related components.In this case, 5V is the voltage supplied to the multiplexer's system.Signal switch has 24 component pins.There is a supply type of Single employed as part of this supply.This multiplexer ic has 24 pins configured.As you can see, it is mounted in the direction of Through Hole.The logic switch is a member of the TTL/H/L family.As part of the operation of this turn signal switch, there are 16 outputs.The digital switch ic is a part of an electronic system classified as Decoder/Drivers.Using a supply voltage of 5V can result in reliable performance of the multiplexers.In order to accept voltage levels, the multiplexers have input lines 4 on the board.

SN74159N Features

Supplied in the 24-DIP (0.600, 15.24mm) package
Adopting a supply type of Single
Operating with the supply voltage of 5V
4 input lines

SN74159N Applications

There are a lot of Texas Instruments
SN74159N Signal Switches / Multiplexers / Decoders applications.

Implementing boolean functions with multiple variables
Data collection system
Audio transmission
Video transmission
Image transmission
Recording transmission
Combinational circuit
Logic gates for other digital devices
Signal router
Data communication
