Skyworks SMV2023-004LF
Skyworks SMV2023-004LF

Skyworks SMV2023-004LF

Manufacturer No:

SMV2023-004LF

Manufacturer:

Skyworks

Package:

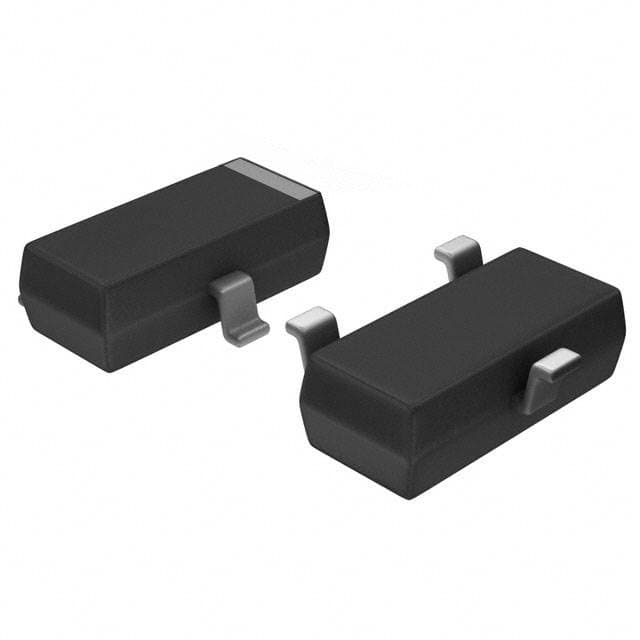

TO-236-3, SC-59, SOT-23-3

Description:

1 Pair Common Cathode Surface Mount 5.4pF @ 4V 50MHz -55°C~125°C TJ Capacitance Ratio-4.2 22V 3 Terminations SILICON DUAL TO-236-3, SC-59, SOT-23-3

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SMV2023-004LF information

Skyworks SMV2023-004LF technical specifications, attributes, parameters and parts with similar specifications to Skyworks SMV2023-004LF.

  • Type
  • Parameter
  • Mounting Type
  • Surface Mount
  • Package / Case
  • TO-236-3, SC-59, SOT-23-3
  • Surface Mount
  • YES
  • Diode Element Material
  • SILICON
  • Operating Temperature
  • -55°C~125°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2012
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Last Time Buy
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Additional Feature
  • LOW NOISE
  • HTS Code
  • 8541.10.00.80
  • Subcategory
  • Varactors
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Pin Count
  • 3
  • JESD-30 Code
  • R-PDSO-G3
  • Qualification Status
  • Not Qualified
  • Configuration
  • COMMON CATHODE, 2 ELEMENTS
  • Power Dissipation-Max
  • 0.25W
  • Diode Type
  • 1 Pair Common Cathode
  • Capacitance @ Vr, F
  • 5.4pF @ 4V 50MHz
  • Voltage - Peak Reverse (Max)
  • 22V
  • Breakdown Voltage-Min
  • 22V
  • Diode Capacitance-Nom
  • 4.9pF
  • Capacitance Ratio
  • 4.2
  • Capacitance Ratio Condition
  • C4/C20
  • Diode Cap Tolerance
  • 10.2%
  • Quality Factor-Min
  • 500
  • Q @ Vr, F
  • 500 @ 4V, 50MHz
  • Variable Capacitance Diode Classification
  • HYPERABRUPT
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Skyworks SMV2023-004LF.

PCN Design/Specification:

Datasheets:

SMV2023-004LF Overview


When it comes to analog input domain voltage, it is not recommended to use a breakdown voltage of 22V.There is no capacitance ratio for a capacitor, which means that it cannot store an electric charge.A diode cap tolerance of 10.2% is characterized by it.Varactor can deliver diode capacVaractorances of 4.9pF.The operating temperature should remain within the range of -55°C~125°C TJ.Furthermore, you can save space by using the TO-236-3, SC-59, SOT-23-3 package.As can be seen from its maximum power dissipation, it conducts power loss efficiently without overheating.A peak reverse voltage within 22V is essential for accurate conversion.

SMV2023-004LF Features


a minimum breakdown voltage of 22V
a breakdown voltage of 22V
a minimum breakdown voltage of 22V
a diode cap tolerance of 10.2%
a temperature range of -55°C~125°C TJ


SMV2023-004LF Applications


There are a lot of Skyworks Solutions Inc.
SMV2023-004LF applications of varactors.


  • Pagers
  • Mobile radio
  • DAB Receiver Modules for use with:
  • -Low voltage battery portables
  • -In car radio
  • -MP3 players
  • Voltage and Temperature Controlled Crystal Oscillators
  • Mobile Radio and Pagers.
  • Digital Radio receivers
  • Mobile radios and Pagers
