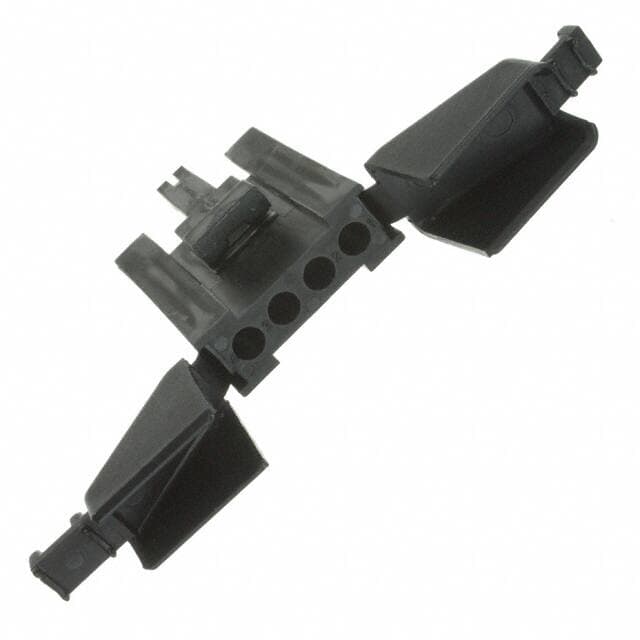

SOURIAU-SUNBANK SMS4PDH1

Manufacturer No:

SMS4PDH1

Manufacturer:

SOURIAU-SUNBANK

Package:

Molded

Description:

1 Rows Plug Black 4 Positions Free Hanging (In-Line) Male or Female Crimp SMS Polyamide

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SMS4PDH1 information

SOURIAU-SUNBANK SMS4PDH1 technical specifications, attributes, parameters and parts with similar specifications to SOURIAU-SUNBANK SMS4PDH1.

Type
Parameter

Factory Lead Time
10 Weeks

Contact Material
Gold

Mount
Free Hanging

Mounting Type
Free Hanging (In-Line)

Package / Case
Molded

Housing Material
Polyamide

Series
SMS

Feature
Strain Relief

Part Status
Active

Moisture Sensitivity Level (MSL)
Not Applicable

ECCN Code
EAR99

Connector Type
Plug

Number of Positions
4

Max Operating Temperature
105°C

Min Operating Temperature
-55°C

Color
Black

Number of Rows
1

Additional Feature
TRIM TRIO

Fastening Type
Latch Lock

Contact Finish - Mating
NOT SPECIFIED

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Mixed Contacts
NO

Pitch
0.200 5.08mm

Total Number of Contacts
4

Orientation
Straight

Depth
57.1mm

Current Rating
5A

Contact Gender
Male

Empty Shell
NO

Operating Supply Voltage
2kV

Insulation Resistance
5GOhm

Note
Contacts Not Included

Contact Termination
Crimp

Length
74.4mm

Width
23.7mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Flammability Rating
UL94 V-2

Lead Free
Lead Free

Download datasheets and manufacturer documentation for SOURIAU-SUNBANK SMS4PDH1.

Datasheets:

souriau-sms4pdh1-datasheets-2652.pdf

souriau-sms4pdh1-datasheets-2653.pdf

SMS4PDH1 Overview

Packaging is in the form of Plug.This device has a Free Hanging (In-Line) mounting type.Specifically, it is one of the products in the SMS Series.Other features include TRIM TRIO, to name just a few.This package contains an enclosed device in the Molded.Several benefits come from the Strain Relief feature.There is a mounting hole at Free Hanging.It runs on 2kV voltage.

SMS4PDH1 Features

SMS series

SMS4PDH1 Applications

There are a lot of SOURIAU-SUNBANK
SMS4PDH1 Rectangular Connectors applications.

Instrumentation
Automotive Electronics
Telecommunications
Data Technology
Blowers
Control panels
Electrical substations
Energy efficient lighting (LED)
LED municipal outdoor and street lighting
All Electrical Machinery
